3X™ 30 HD Snow Blower
Superior Quality that Handles Winter’s Worst
The award-winning 3X is the powerhouse of the X Series line. With a patented three-stage system, the 3X clears deep snowfall up to 50% faster than a traditional snow blower. That means you can easily and quickly remove 18 inches of snowfall at a comfortable pace. It will even bust through the wall of winter at the end of the driveway. When you have 3X strength, nothing is in your way.
Documents and Guides
- 420cc OHV Engine is powerful, dependable and equipped with push-button electric start
- 30 inch clearing width and 23 inch intake height
- 16” X-Trac™ tires provide strong traction in snowy conditions
- Dual LED headlights to clear snow before dawn or after dark
You're shopping available inventory from
3X™ 30 HD Snow Blower Features
Unbeatable 3-Stage Power
The induction accelerator pulls more snow, ice, and slush through the system like a turbocharger, which is ideal for busting through the wall of winter at the end of the driveway.
Cast aluminum auger gearbox protects auger gears for maximum durability and the increased intake height of 23'' allows you to take on the highest snow.
Built for the Long Haul
With just one finger, you can engage the power steering giving you unmatched control, effortless maneuverability and single-hand operation.
Push Button Electric Start

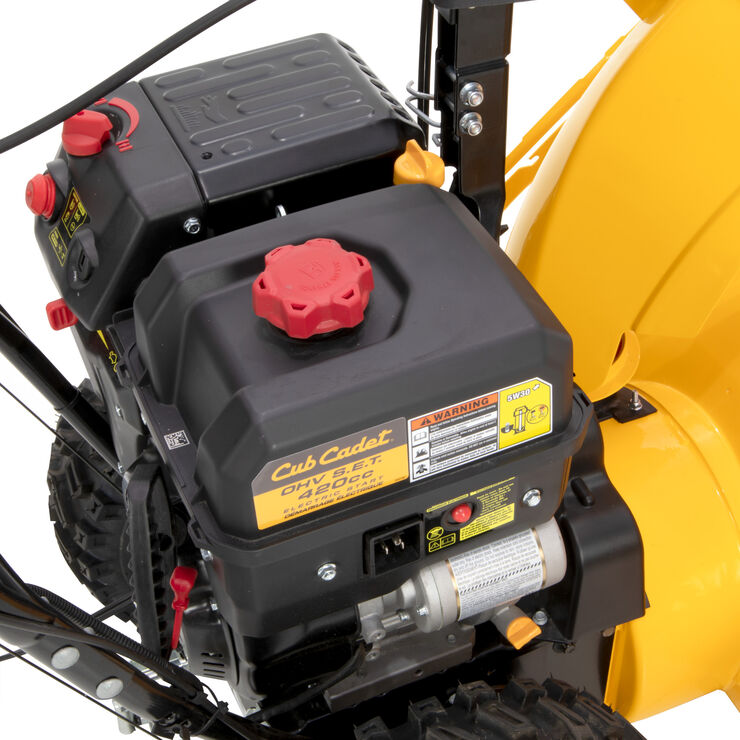

A large 4-cycle Cub Cadet engine gives you more power. And it all starts with the push of a button.
No rust, non-marking, reversible skid shoes glide along surfaces for better maneuverability.
Work before dawn or after dark with dual LED headlights.
A 23-inch intake height allows you to clear snow more efficiently.
Break Through Snow
Drift cutters allow you to break through tightly packed snow.
Rotate the chute a full 200° with just 2.5 turns of the crank.
Easy Pitch Control
Change the pitch of the chute to throw snow up to 40-feet.
Specs & Maintenance
- Engine Brand Cub Cadet®
- Engine Model Number 690-WUC
- Engine Displacement 420cc
- Fuel Tank Capacity 5 quarts US / 4.7 L
- Engine Start Recoil and Push-Button Electric
- Governor Mechanical
- Fuel Delivery Carburetor
- Number of Forward Speeds 6
- Number of Reverse Speeds 2
- Drive System All-wheel Drive
- Drive Type Friction Disc
- Tire Size 16" x 6.5"
- Tread X-TRAC™
- Warranty 3-year limited residential
- Auger Gearbox Warranty 5-year limited
- Commercial Warranty 1-year limited
- Chute Warranty 3-year limited
- Warranty Disclaimer See owners manual for warranty details and information. Certain restrictions apply.
- Handle Grip(s) Soft-Touch Heated Grips
- Pitch Control Remote Single-Lever
- Chute Rotation 200°
- Chute Control Overhead Crank
- Single-Hand Operation Standard
- Steering Control Trigger-Controlled Power Steering
Power and Performance
- Clearing Width 30"
- Intake Height 23"
- Auger Gear Box Heavy-duty cast aluminum
- Number of Stages Three
- Auger Diameter 12"
- Impeller Diameter 12"
- Accelerator Diameter 12"
- Headlight(s) Dual LED
- Shave Plate Heavy Duty Steel
- Skid Shoes Reversible Poly
- Drift Cutters Yes
- Auger Material Serrated Steel
- Chute Material Steel
- Chute Clearing Device Yes
- Model Number 31AH5EVZ596
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
