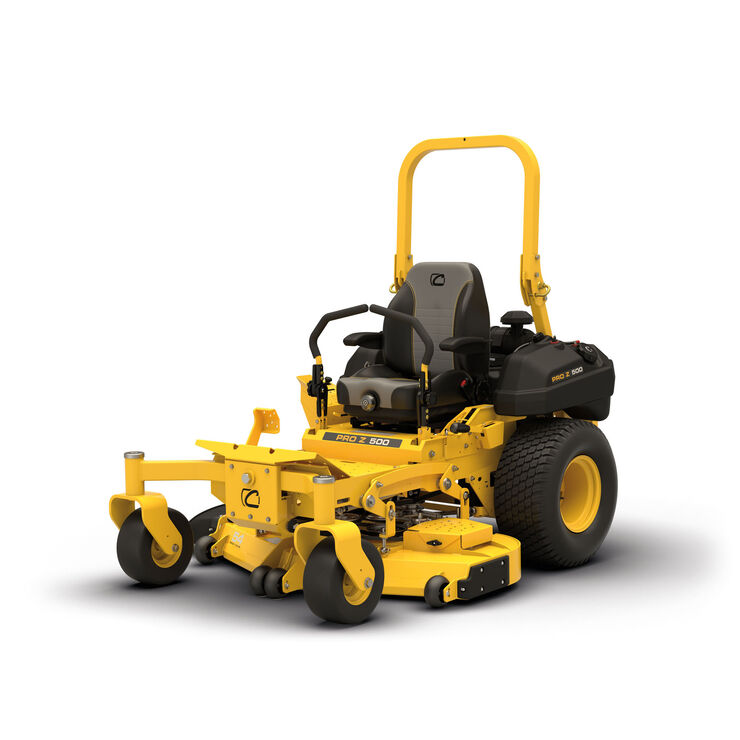

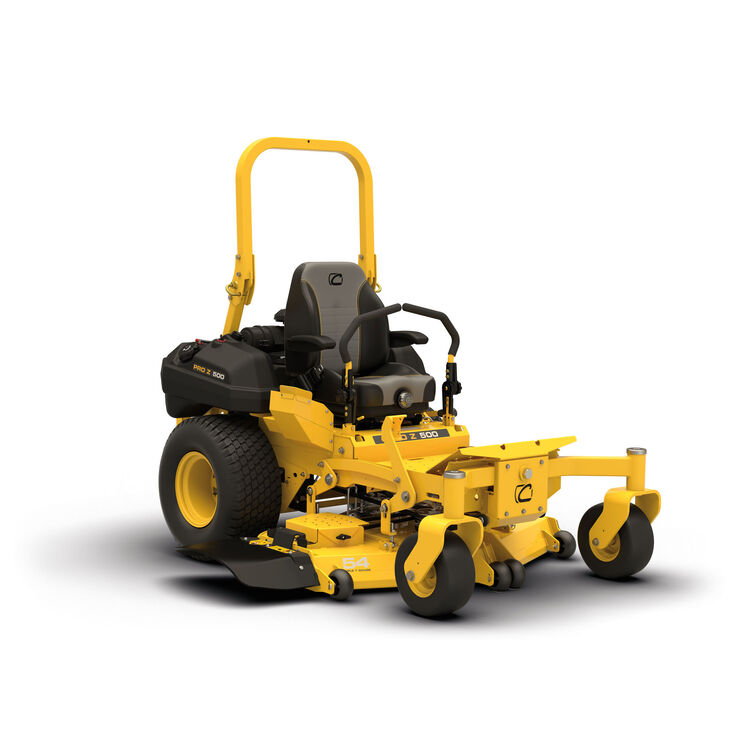

PRO Z 554 L KW
PRO Z 500 L SERIES
Item#:
53TIHJTN050
From
$ 17,599.00
MSRP
PRO Z 554 L KW
PRO Z 500 L SERIES
Item#:
53TIHJTN050
From
$ 17,599.00
MSRP
- 27 HP Kawasaki FX850v (852cc) engine and 12cc Parker HTJ transmission
- 54” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
- 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty
You're shopping available inventory from
Attachments & Accessories
PRO Z 554 L KW Features
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FX Series
- Engine Model Number 850V
- Engine Displacement 852cc
- Engine Output 27HP
- Fuel Tank Capacity Dual 7.45 gal. US (28.2 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Fuel Gauge Dial
- Choke Separate Choke
- Air Filter High Density
- Oil Filter Yes
- Fuel Delivery Carburetor
Drive System
- Transmission Parker HTJ Series, 12cc pump / 260cc wheel motor
- Forward Speed 10 mph / 16 km/h
- Reverse Speed 5 mph / 8km/h
Cutting Deck
- Deck Cutting Width 54 in
- Deck Material fabricated 7ga. (.187”) steel shell
- Deck Engagement (PTO) electronic fingertip engagement pto
- Deck Construction 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
- Spindle Construction 8" sealed cast aluminum housing (maintenance-free)
- Blade(s) 3 high-lift Marbain® blades / 18,500 fpm (approx.)
- Cutting Height Range 1” to 5” in 1/4” increments
- Anti-Scalping 2 front deck gauge wheels
- Deck Positions Foot pedal with spring assist 16 Positions
Chassis
- Frame Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
- ROPS 2" x 2" quick-latch tool-less foldable 3 position
- Bumper 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Yokes 2" x 3" solid axle tube and 1/2" thick steel front yokes
Controls
- Cruise Control NA
- Brakes Hand-operated lever with integrated hydro pump release lever
- Steering Control High Performance & Speed Control
Comfort
- Seat Type Cushion
- Armrests standard
- Seat Suspension High-back dial suspension with EVC
- Seat Adjustment Angle back adjust
Wheels
- Rear Tires 24"x12"-12"
- Front Tires 13"x6.5"-6" Std Smooth Carlisle-Air Filled
- Tire Tread Turf Tread
Dimensions
- Dimensions L/W/H 84" L x 56" W x 50" H
- Weight (approx.) 1300 lbs.
Additional Specifications
- Hour Meter Crew Boss all functions
- Discharge Chute High-density, impact-resistant rubber
- Cup Holder Intergrated into Side Pod
- Model Number 53TIHJTN050
Warranty
- Warranty 3 year / no hour limit commercial warranty and 5 year / 1,750 hour limited deck construction warranty
- Deck Shell Warranty 5 year / 1,750 hour limited deck construction warranty
- Commercial Warranty 3 year / no hour limit commercial warranty
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 53TIHJTN050 | MANL:OPER:ENGL:PRO Z XXXL | ||
| MANL:OPER:ENGL:PRO Z XXXL | 769-17796 | Download | |
| MANL:OPER:ENGL:PRO Z XXXL | 769-17796A | Download | |
| MANL:OPER:ENGL:PRO Z XXXL | 769-17796B | Download | |
| MANL:OPER:ENGL:PRO Z XXXL | 769-17796C | Download | |
| MANL:OPER:ENGL:PRO Z XXXL | 769-17796D | Download | |
| MANL:OPER:ENGL:PRO Z XXXL | 769-17796E | Download | |
| MANL:OPER:ENGL:PRO Z XXXL | 769-26265 | Download | |
| MANL:OPER:ENGL:PRO Z XXXL | 769-26265A | Download | |
| MANL:OPER:ENGL:PRO Z XXXL | 769-26788 | Download | |
| MANL:OPER:ENGL:PRO Z XXXL (18) | 769-12347 | Download | |
| MANL:OPER:FRENCH:PRO Z XXXL | 769-17796_FR | Download | |
| SHEET:SUP:BILING:EPA:EVP:06301 | 769-15171 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-17171 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download |
