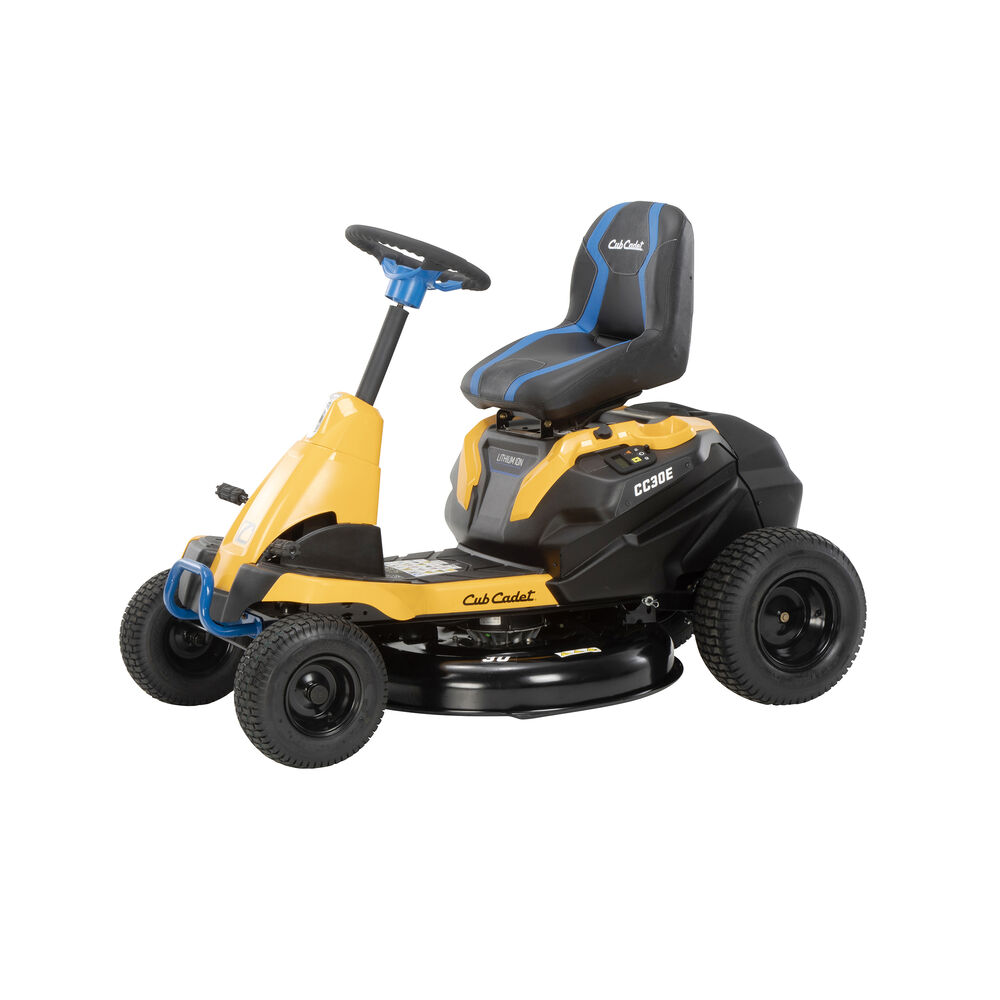

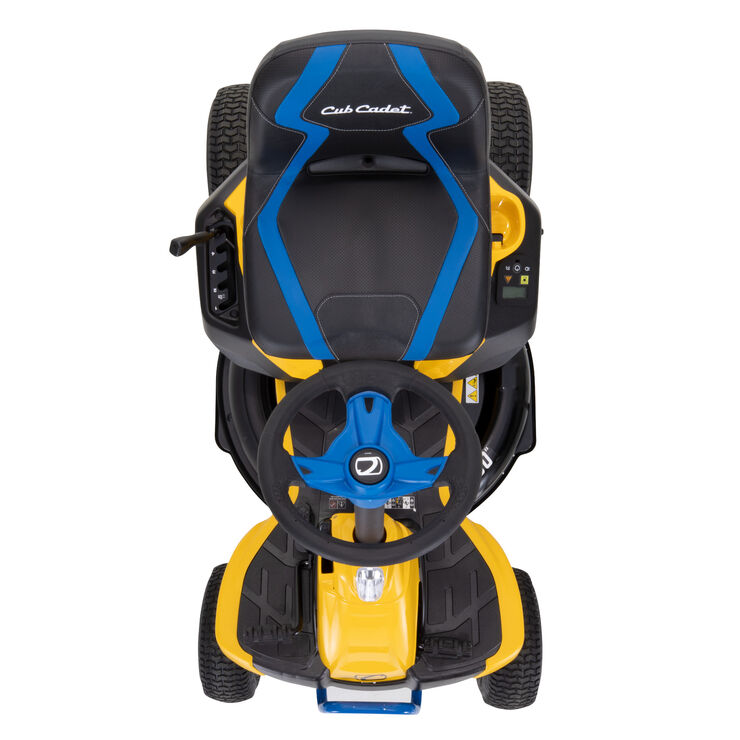

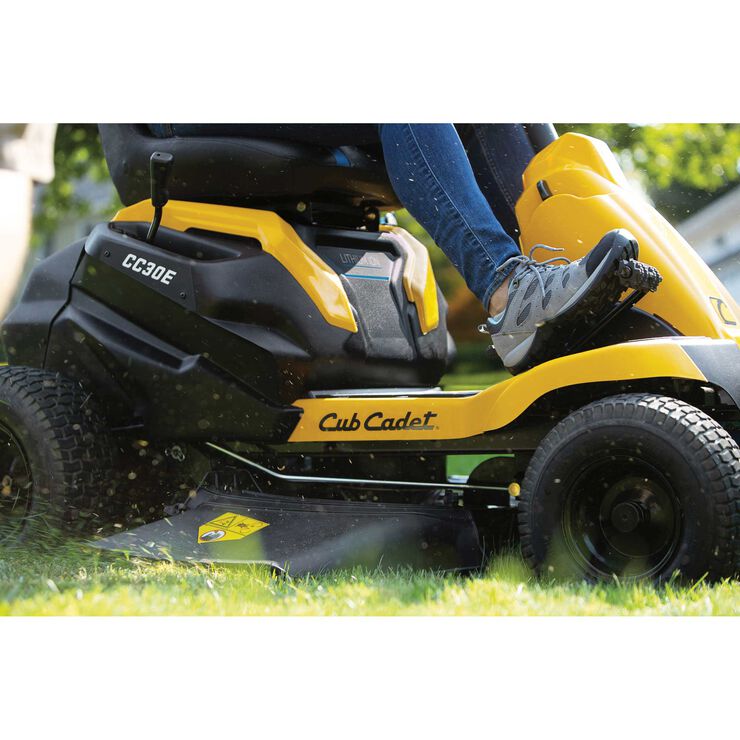

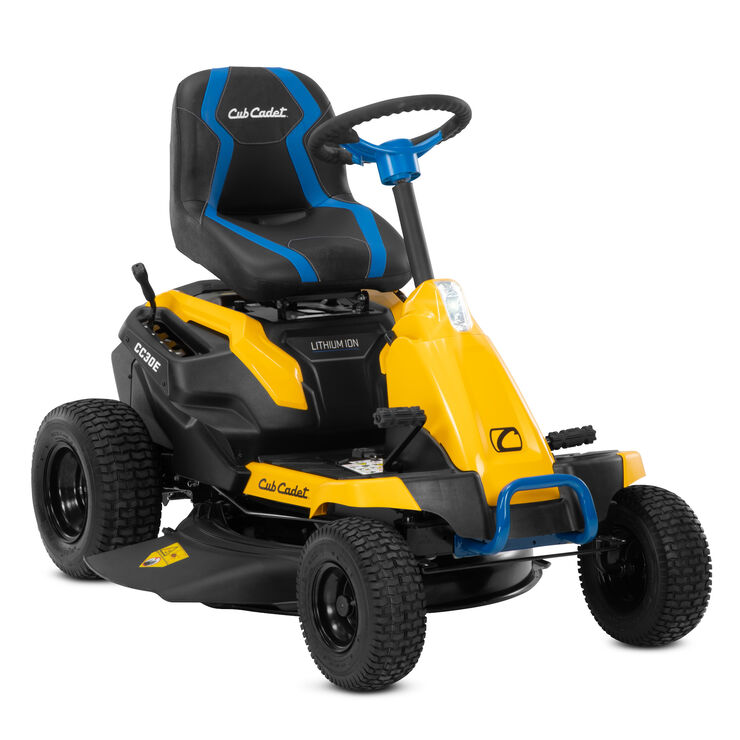

CC 30E
Documents and Guides
- 56 Volt MAX, 30Ah, 1500Wh lithium-ion battery that can be charged using a standard 110-Volt outlet
- Mow up to one acre, or 1 hour, on a single charge without power fade. Recharges in about 4 hours
- No need for oil changes, filters to change, spark plugs to change, no more buying gas
- 30-inch, single-blade deck with side discharge
- 3-year limited residential / 4-year limited battery warranty
You're shopping available inventory from
CC 30E Features
No Power Fade

This lithium-ion technology allows for full speed and consistent, high-powered performance without fading.
Dual USB Ports

Easily accessible to charge small mobile devices while mowing.
Powerful Illumination

LED headlight provides comfortable and precise cutting at dawn or dusk.
Easy to Use

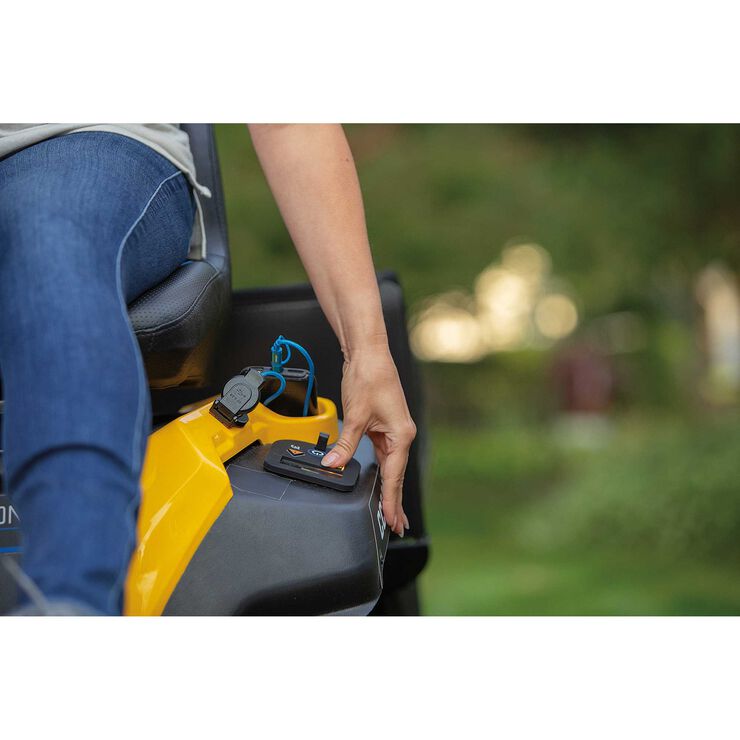

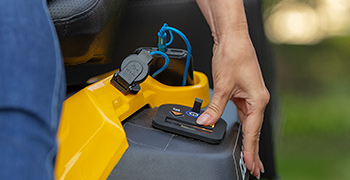

Push button start and cruise control to maintain a desired speed for consistent mowing.
Smooth Operation

Hydrostatic transmission means no shifting; just push the pedal for Forward or Reverse.

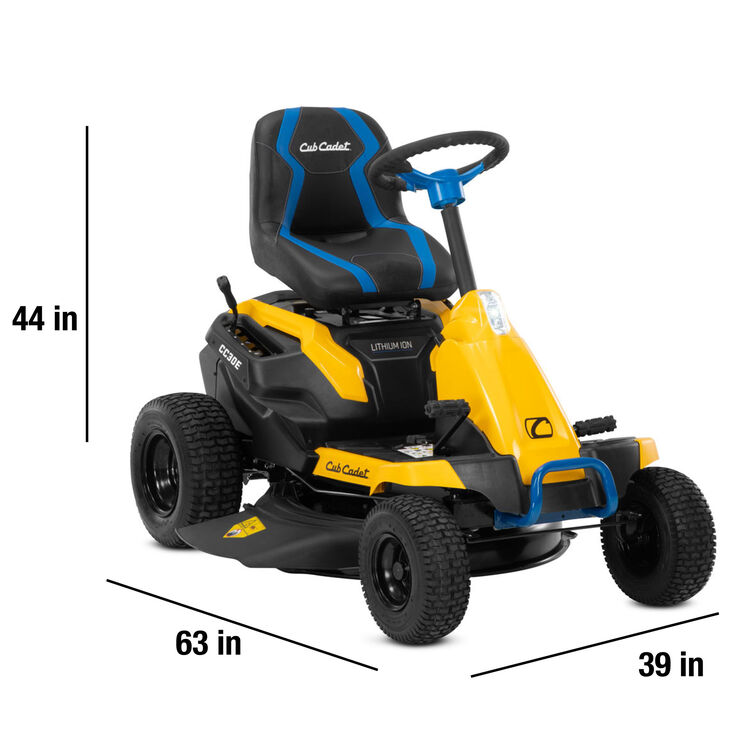

Compact Design

With an 18-inch turn radius. the CC30E can easily maneuver through openings as narrow as 36-inches.
Ride in Comfort

Premium 15-inch adjustable cut-and-sew seat.
Premium Cut

A brushless motor delivers power to a 30-inch, direct drive cutting deck.
Zero Emissions

No exhaust, carbon monoxide, or unburned hydrocarbons from the on-board source of power.
Unmatched Support

An experienced national dealer network delivers dedicated personal owner support, seven days a week.
Strong Warranty

Built in America and backed by a 3-year limited residential and 4-year limited battery warranty.
Specs & Maintenance
Engine
- Engine Output N/A
- Starter Type Electric
- Cylinders N/A
- Engine Start Ignition Key
Battery
- Run Time Up to 1 hour or up to 1 acre
- Charge Time 4 hours
- Battery Type Lithium ion
- Fast Charger Included
- Battery Gauge Digital
- Battery Voltage 56V MAX
- Watt Hours 1500Wh
- Ampere Hours 30Ah
Drive System
- Transmission Electric, 56V MAX
- Forward Speed 4 MPH / 6.4 km/h
- Reverse Speed 2 MPH / 3.2 km/h
- Rear Axle 3/4"
- Drive System Brushless Electric Motor
- Transmission Control Foot Pedal
- Transmission Housing Cast aluminum
- Rear Differential Lock No
- Transmission Input Brushless motor
Cutting Deck
- Deck Cutting Width 30 in
- Deck Wash No
- Deck Material 14-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Stamped
- Blade(s) 1
- Deck Lift Manual
- Cutting Height Range 1.5" - 4"
- Anti-Scalping N/A
- Deck Positions 5
Chassis
- Frame Robotically welded
- Turning Radius 18"
- Bumper Steel Tube
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Pivot Bar Steel
Controls
- Cruise Control Yes
- Brakes Disc
Comfort
- Seat Type 15" High-back
- Armrests No
- Seat Adjustment Knob
- Floor Mats Intergral
Wheels
- Rear Wheels 16" x 6.5"
- Bearing Type Poly Bushing
- Rear Tires 16" x 6.5"- 8”
- Front Tires 13" x 5" -6”
- Tire Tread Turf Saver
Specifications
- Mowing Motor Brushless
- Series CC30 Series
Additional Specifications

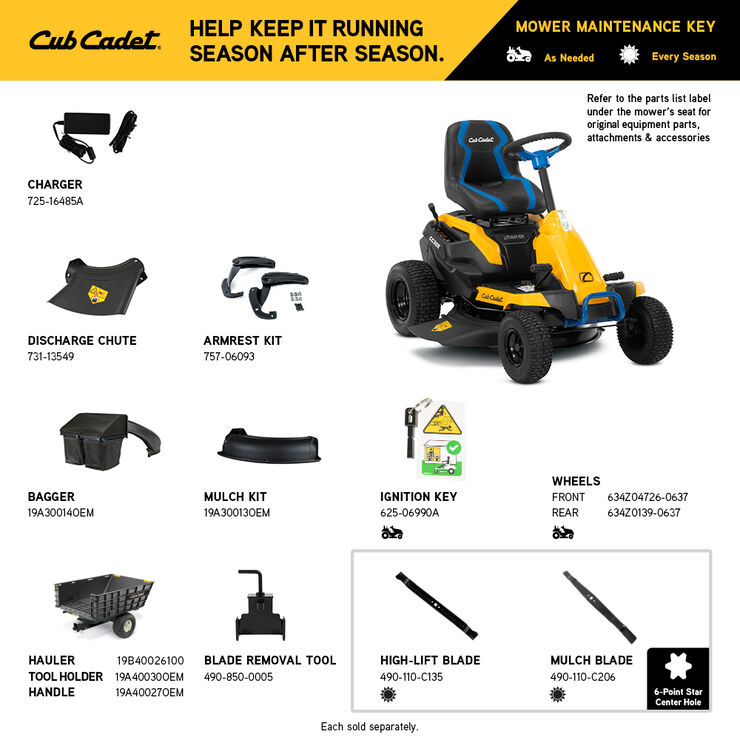

- Mulch Kit Included
- Headlight(s) LED
- Cup Holder Yes
- Certifications Full UL compliance, ANSI certified
- Operator Presence System Yes
- Model Number 33BA27JDB10
Warranty
- Warranty 3-year unlimited hours
- Frame Warranty 3-year limited
- Front Axle Warranty 3-year limited
- Deck Shell Warranty 3-year limited
- Commercial Warranty No
- Battery Warranty 4-year limited
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
---|---|---|---|
33BA27JDB10 | MANL:OPER:BATTERY CHARGER:120V | ||
MANL:OPER:BATTERY CHARGER:120V | 769-25899A | Download | |
MANL:OPER:BILING:CONSOLIDATED: | 769-26542 | Download | |
MANL:OPER:BILING:CONSOLIDATED: | 769-26542A | Download | |
SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
SHEET:SUPP:WARR:CC eCR12 | 769-25917A | Download | |
SHEET:SUPP:WARR:CC eCR12 | 769-26648 | Download |
