- The Cub Cadet XT3 GSX is powered by a 25 hp KOHLER Command Series twin cylinder engine
- Rear differential locking provides increased traction compared to a standard or open differential, easily engage with a lever when the rear tire is slipping on uneven terrain or hills
- A heavy-duty steel brush guard provides greater protection for tougher tasks
- Soft grip steering wheel provides more control that’s easy on your hands
- 4-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours
You're shopping available inventory from
Attachments & Accessories
XT3 GSX Features
Upgraded Power
Only the XT3 has an automotive-style direct shaft drive. That means no belts to the drive system to slip or break- just maximum power delivery and durability.
Deluxe Features
Rugged, low maintenance LED headlights, adjustable high-back seat with armrests, automatic transmission and cruise control- all standard.
Guaranteed To Last
Forward-thinking engineering and the highest-quality standards for strength you can trust.

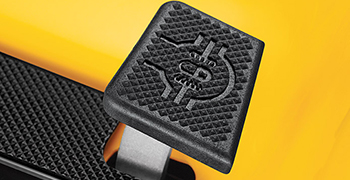

Diff-Lock
Foot-controlled traction control differential lock for all weather conditions and cutting terrains.
Corrosion Defense System
A multi-step process electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear.
Incredibly Responsive Handling
Optimized command and control at every turn with hydrostatic transmissions. No more shifting. Just push the pedal and go.
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model Command V-Twin OHV
- Engine Displacement 725cc
- Engine Output 25HP
- Starter Type Electric
- Fuel Tank Capacity 3.3 gal. US (12.50 L)
- Cylinders Twin
- Engine Start Electric
- Engine Oil Capacity 2.0 qts. US (1.89 L)
- Lubrication Fully-pressurized automotive-style oil pump w/spin-on oil filter
- Charging System Flywheel Alternator - 15 amp regulated
- Choke Separate Choke
Battery
- Battery 300 CCA
- Battery Type Standard Lead Acid
- Battery Voltage 12V
Drive System
- Transmission Direct Shaft Drive, foot-controlled hydrostatic Hydro-Gear™ cast-iron transmission
- Rear Axle 1"
- Drive System Hydrostatic
- Transmission Housing Cast iron
- Rear Differential Lock Yes
Cutting Deck
- Deck Cutting Width Optional 42", 50", 54" Stamped and 48", 54, 60" Fabricated
- Deck Wash N/A
- Deck Engagement (PTO) Electric
- Deck Lift Electric
- Cutting Height Range 1.5" - 4"
- Anti-Scalping N/A
- Deck Positions 6
Warranty
- Warranty 4-year unlimited hours (including powertrain)
- Frame Warranty 5-year limited warranty
- Front Axle Warranty 5-year limited warranty
- Deck Shell Warranty Limited lifetime warranty on fabricated deck shell
Chassis
- Frame Fully robotically-welded twin C-channel frame assembly
- Front Axle Heavy-duty cast-iron with dual grease fittings
- Turning Radius 18"
- Bumper Brush Guard
- Rear Tow Hitch Yes
Controls
- Cruise Control Yes
- Steering Electronic Power Steering (EPS)
- Brakes Disc
Comfort
- Seat Type Deluxe high-back seat with armrests and 6" slide
- Armrests Yes
- Seat Adjustment Lever
- Floor Mats Rubber
Wheels
- Bearing Type Ball Bearing
- Rear Tires 23-in x 10.5-in
- Front Tires 16-in x 6.5-in
- Tire Tread Turf Master™
Additional Specifications
- Mulch Kit Optional
- Headlight(s) LED High Illumination
- Cup Holder Yes
- Operator Presence System Yes
- Model Number 14CD3LE-010
Disclaimer
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 14CD3LE010 | MANL:OPER:ENGL:XT3 | ||
| MANL:OPER:ENGL:XT3 | 769-11859A | Download | |
| MANL:OPER:ENGL:XT3 | 769-12483 | Download | |
| MANL:OPER:ENGL:XT3 | 769-17411 | Download | |
| MANL:OPER:ENGL:XT3 | 769-17411A | Download | |
| MANL:OPER:ENGL:XT3 | 769-17411B | Download | |
| MANL:OPER:FRENCH:XT3 | 769-12483_FR | Download | |
| MANL:OPER:FRENCH:XT3 | 769-17411B_FR | Download | |
| SHEET:SUP:BILING:EPA:EVP:06301 | 769-15171 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-17171 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download |
