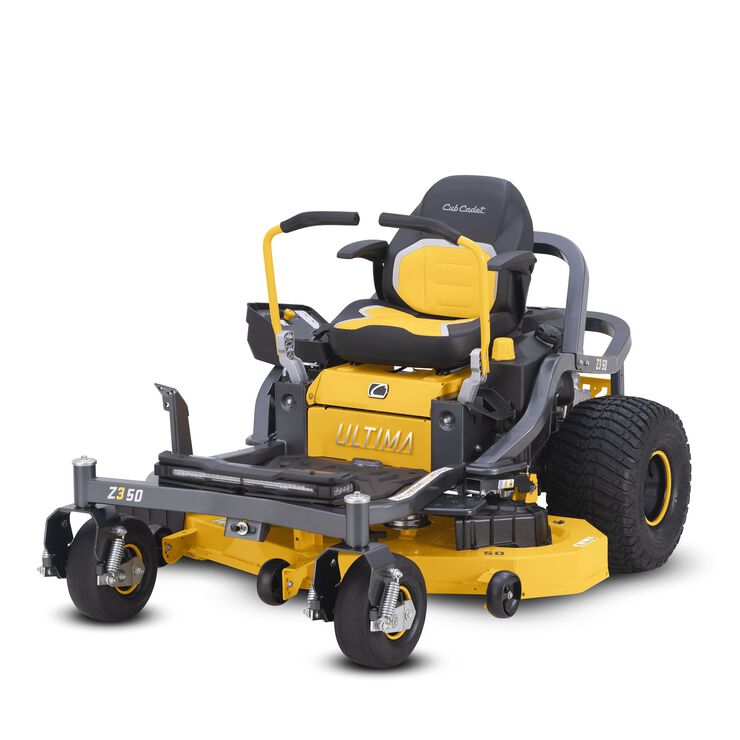

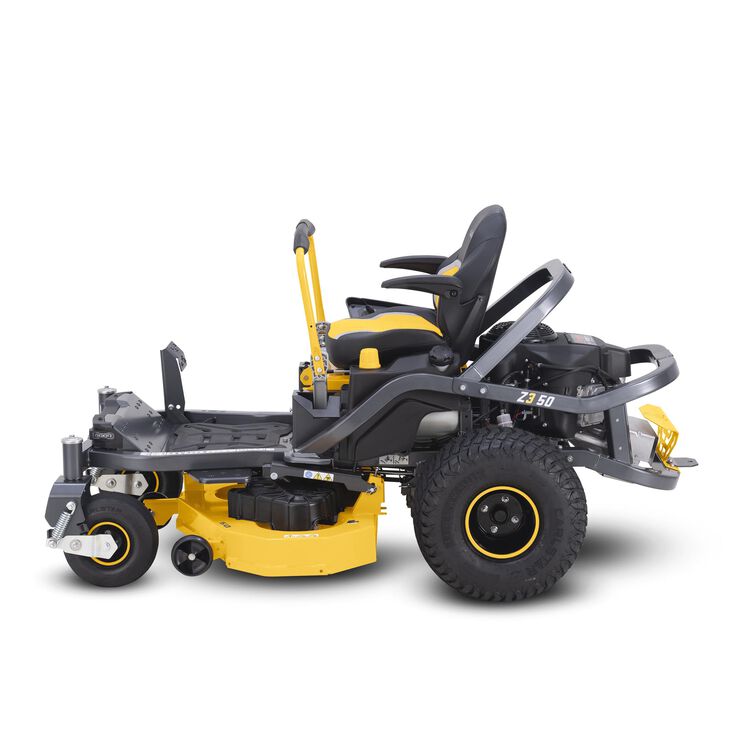

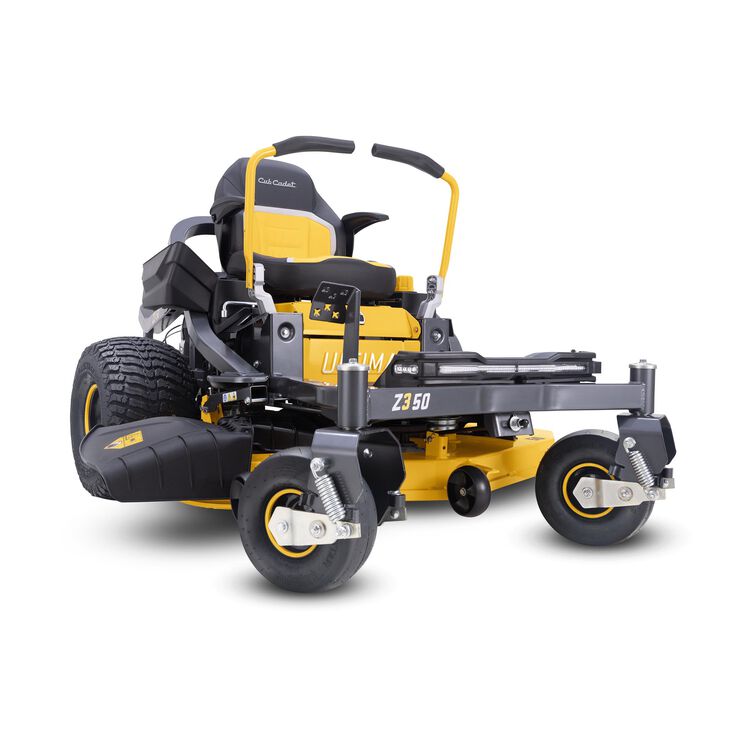

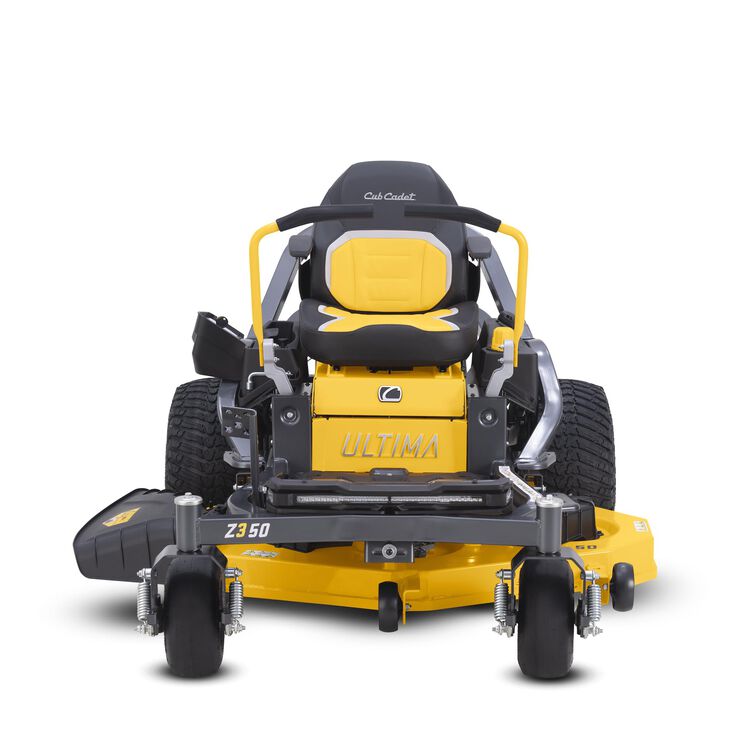

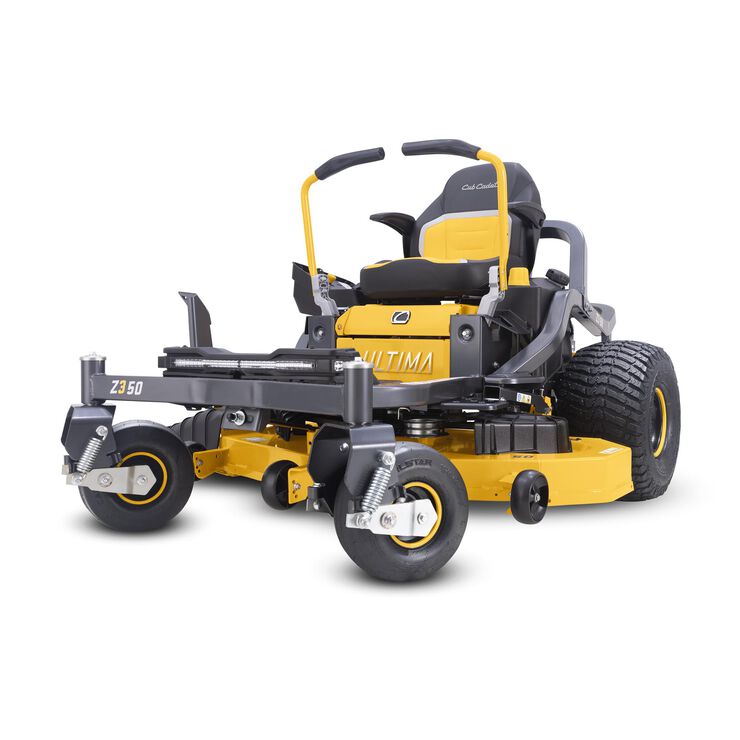

Z3 50
The Ultimate Mowing Experience is about to step up with enhanced comfort and performance designed to deliver the proven results you expect from the Ultima Series™. The Cub Cadet® Ultima Series Z3 50 50-in. 24 HP*/726cc Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck delivers uncompromised performance, durable strength, and proven results needed to tackle hills and slopes up to 15-degrees. Work in comfort with a high back seat and save time mowing with an Ultima Series™ zero-turn, 25% faster than a tractor**
- The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable 24 HP*/726cc Kawasaki® Engine built to meet fierce demands.
- A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
- Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.
- Ride in ultimate comfort thanks to a front caster suspension that delivers up to 1,050 lbs. of shock absorption to help reduce vibration.*
You're shopping available inventory from
Z3 50 Features
2x2 Tubular Frame
Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.
Front Axle
Trim with precision thanks to an offset front axle designed to deliver a quality cut.
Turf Armor® Tires
Tackle wet, uneven terrain in style with an aggressive tire tread designed to deliver reliable traction and minimize turfing. .

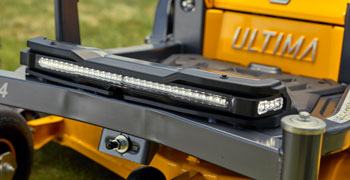

Front LED Bar Headlight and Side Lights
Brighten your path with a front LED light bar with side lights built to be 5.5x as bright* to help spot obstacles and uneven terrain.

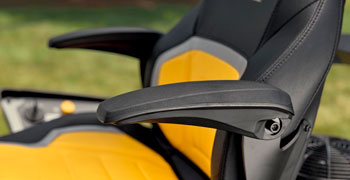

20" High Back Seat with Arm Rests
Mow comfortably with arm rests and an automotive-styled high-back seat equipped with a seat slide and bolstered using a custom foam designed to minimize vibration.
Ergo Grips™
Comfortably control your zero-turn with overmolded rubber hand grips designed to minimize vibration.

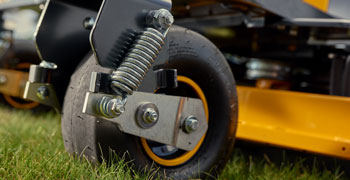

Front Caster Suspension
Ride in ultimate comfort thanks to a front caster suspension that delivers up to 1,050 lbs. of shock absorption to help reduce vibration.*

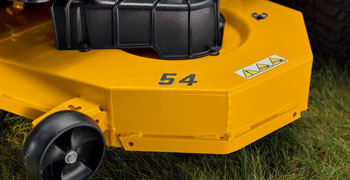

AeroForce™ Reinforced Fabricated Deck
A 10-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Strong Warranty
Backed by a 3-year no hour limit warranty, and lifetime limited frame and deck warranty.
Step Assist
Climb aboard your zero-turn with a step assist that provides a stable and secure foothold.
Smooth Drive
Dual hydrostatic transmissions are designed to eliminate shifting and allow for quick and easy 7 MPH forward (3.5 MPH reverse) ground speeds for a smooth drive.
Kawasaki® Engine
The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine.
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FR Series
- Engine Model Number 730V
- Engine Displacement 726cc
- Engine Output 24HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.1 qt US ( 2 L)
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Separate Choke
- Air Filter Single element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 230 CCA
- Battery Type Lead Acid
- Battery Voltage 12V
Drive System
- Transmission Tuff Torq TZ 350
- Forward Speed 7.5 MPH /12.0 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
- Serviceable Transmission Yes (Serviceable)
Cutting Deck
- Deck Cutting Width 50 in
- Deck Wash No
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Reinforced Fabricated
- Blade(s) Three
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1'' - 4.5''
- Anti-Scalping Three gauge wheels
- Deck Positions 15
Chassis
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Caster Yokes 5/16" Steel
Controls
- Cruise Control No
- Handle Grip(s) Ergonomic Overmolded Soft Touch
- Brakes Disc
- Steering Control Lap Bars
Comfort
- Seat Type 20" Cut-and-Sew with Head Bolster
- Armrests Yes
- Seat Adjustment Lever
- Front Caster Suspension Yes
Wheels
- Rear Tires 20"x 12"-8"
- Front Tires 11"x 6.0"-5"
- Tire Tread Turf Armor
Specifications
- Series Ultima Series™ Z
Additional Specifications
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) LED Lightbar with Side Lights
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 17RIECE2010
Warranty
- Residential Warranty 3-year unlimited hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower *As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International. Engine power ratings are as certified by the engine manufacturer. Actual operating power may vary. Refer to the engine manufacturer's website for additional information.
- Efficiency **Mowing identical grass conditions using a 42-inch Ultima Series zero-turn mower at a speed of 7 MPH vs. a Cub Cadet® 42-inch lawn tractor at a speed of 5 MPH.
- Caster Suspension Based on each wheel taking 525 lbs of force for up to a total of 1,050 lbs. of resistance/impact loading.
-
Quebec Disclosure
CUB CADET® Canada does not guarantee the availability of replacement parts, repair services or information necessary to maintain or repair products subject to and under the meaning of the Quebec Consumer Protection Act, as amended by Bill 29.
CUB CADETMD Canada ne garantit pas la disponibilité de pièces de rechange, de services de réparation ou de renseignements nécessaires à l’entretien ou à la réparation de produits assujettis à la Loi sur la protection du consommateur du Québec, telle que modifiée par le projet de loi 29.
- LED Lightbar with Side Lights Front LED light bar with side lights vs. Cub Cadet® Classic Twin LED Front Headlights 625-05041, measured in total lumens.
