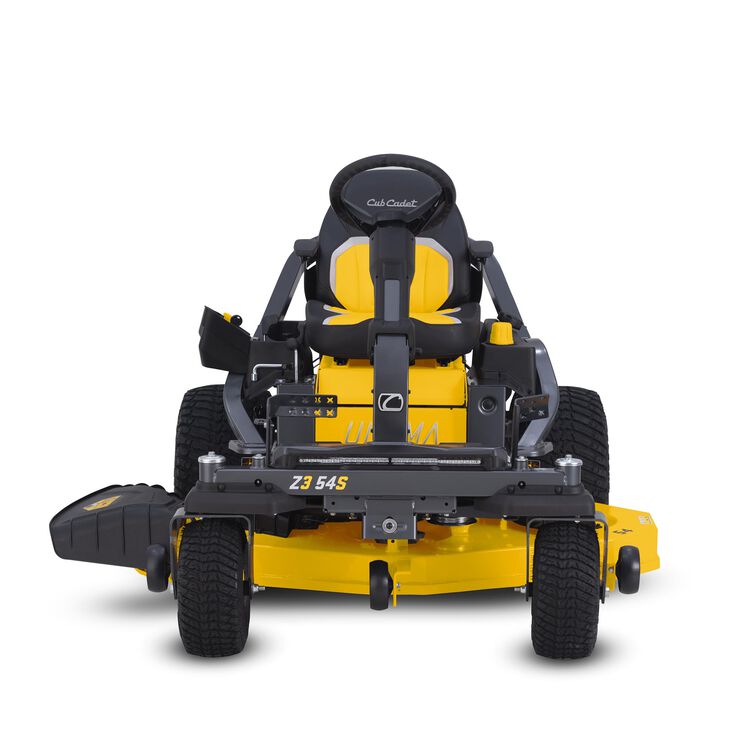

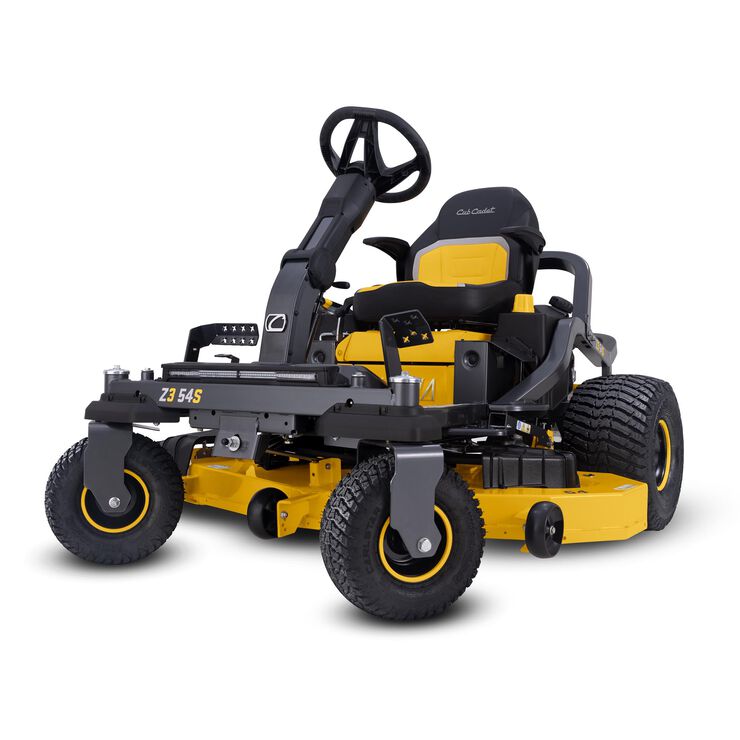

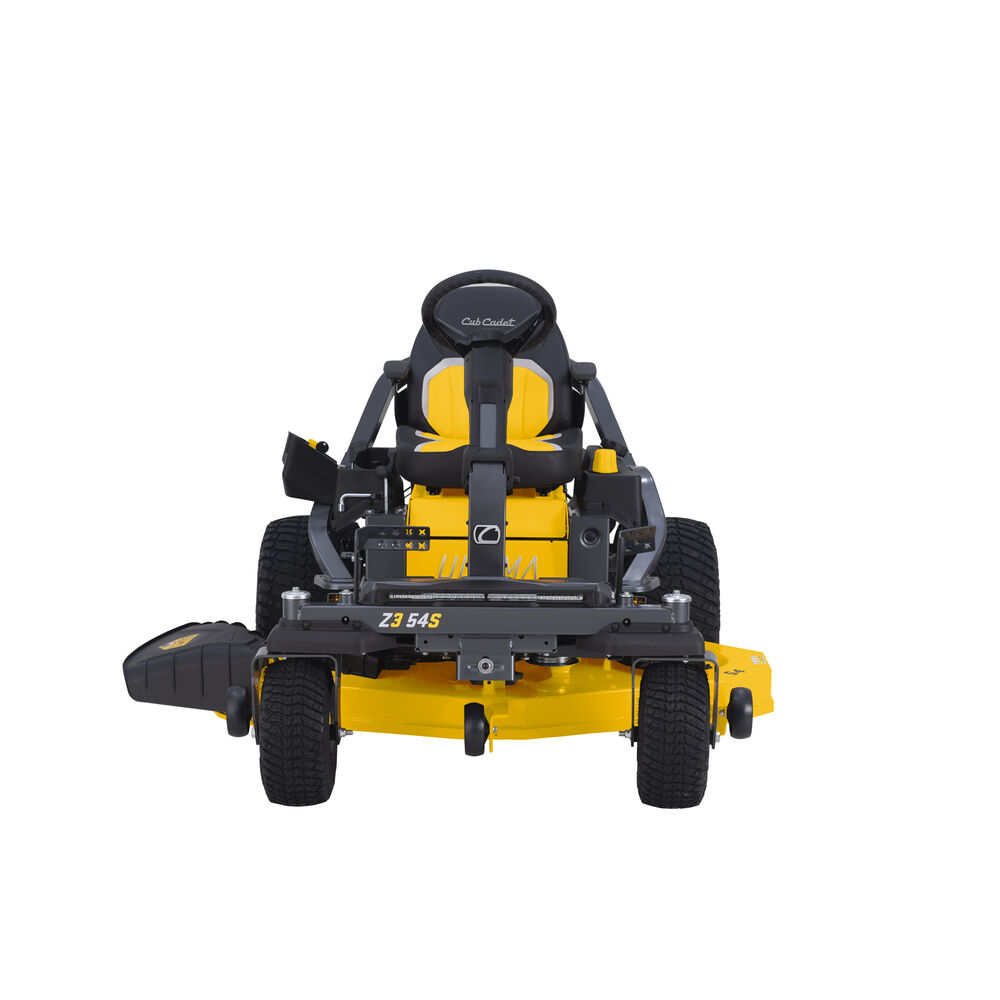

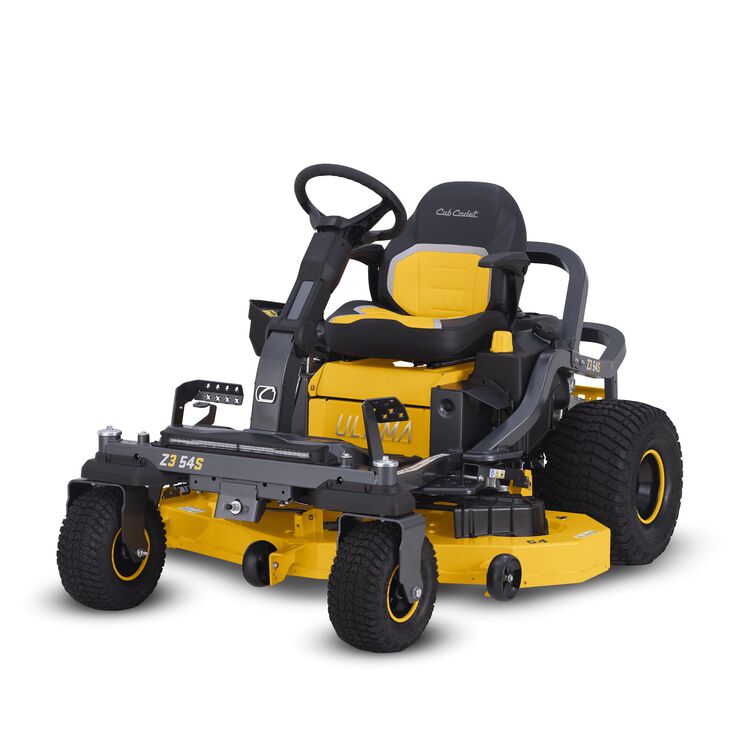

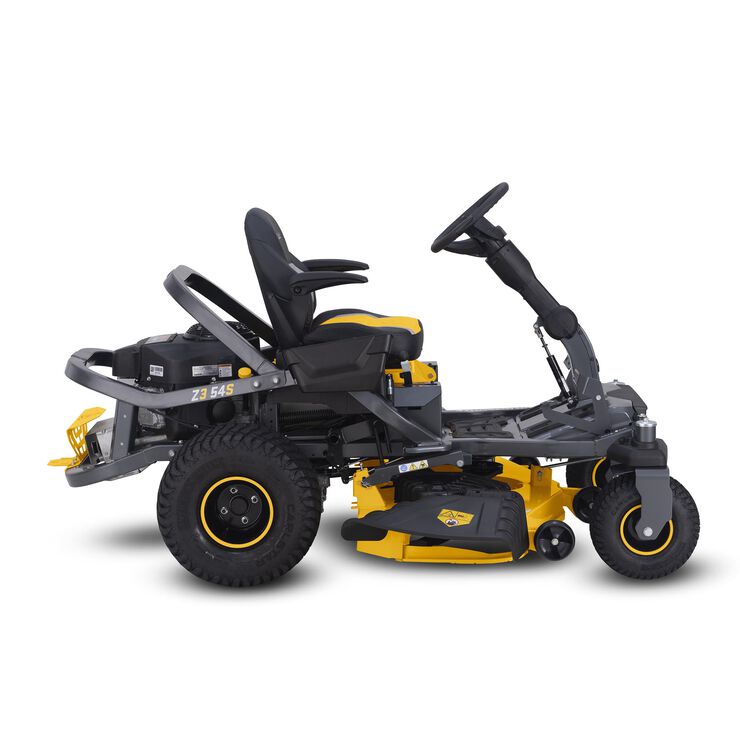

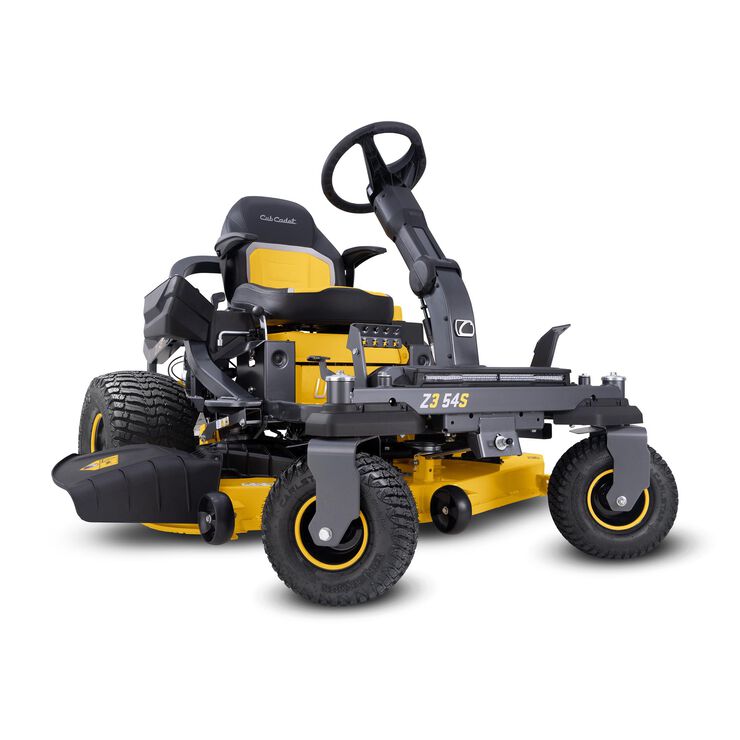

Z3 54S

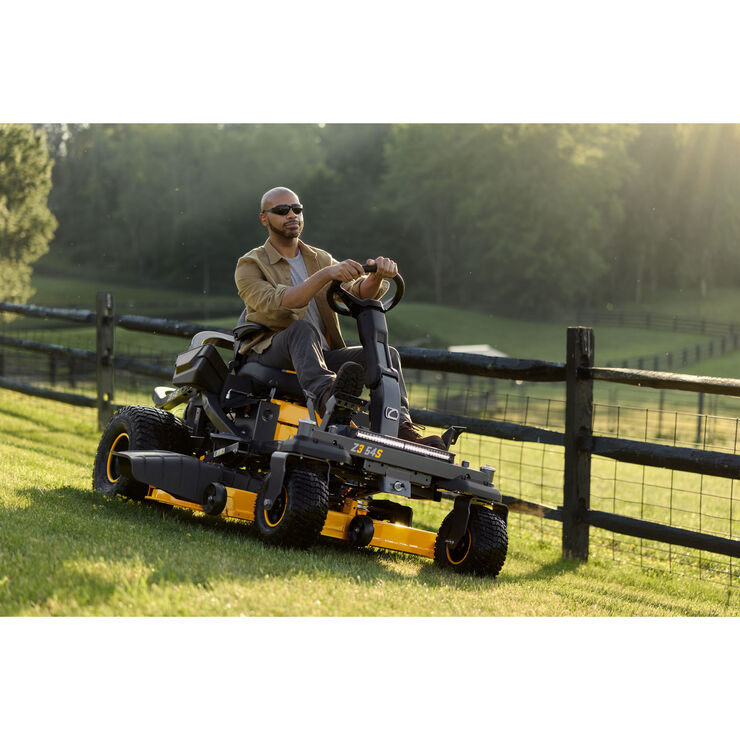

Step up to the advanced Ultima Series™, the Cub Cadet® Ultima Series Z3 54S 54-in. 23 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is engineered for precision, control, and stability on challenging terrain. Don’t back down from hills and slopes up to 20-degrees**. Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides. Experience uncompromised performance and durable strength, designed to help you mow efficiently and maintain control.

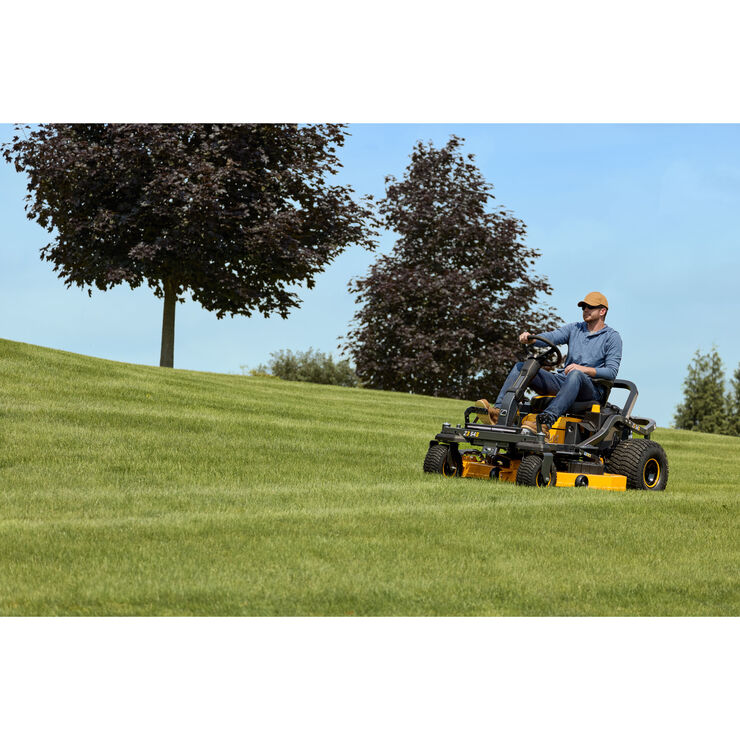

- Experience the ultimate in control even when facing slopes and hills up to 20-degrees with Cub Cadet® steering wheel zero-turns equipped with patented Synchro-Steer™ technology.
- The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine. A 23 HP* Kawasaki® twin-cylinder OHV engine delivers high-performance to tackle your yard.
- A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
- Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.
You're shopping available inventory from
Attachments & Accessories
Ship to Home Available
Ship to Home Available
Ship to Home Available
Z3 54S Features

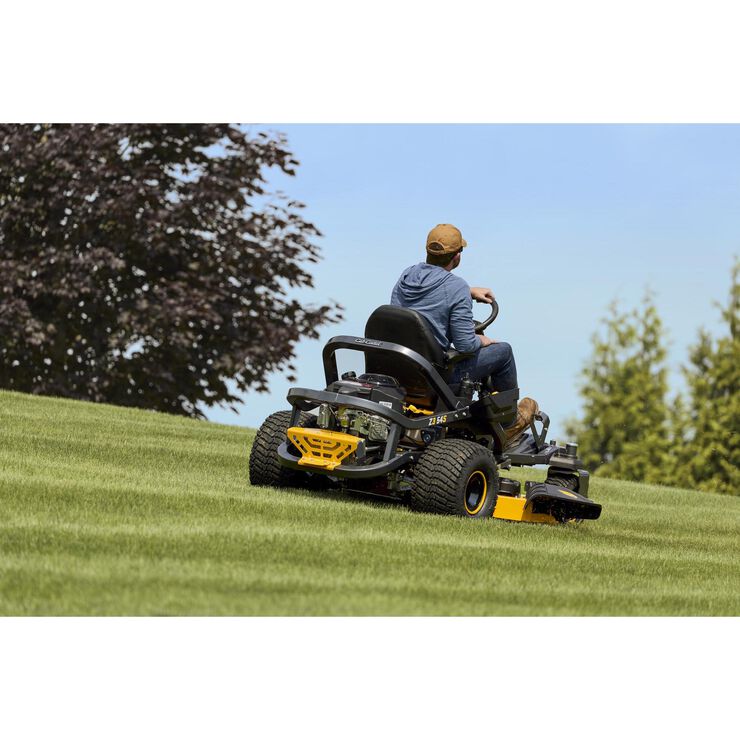

Synchro-Steer™ Technology
Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides and slopes up to 20-degrees*.

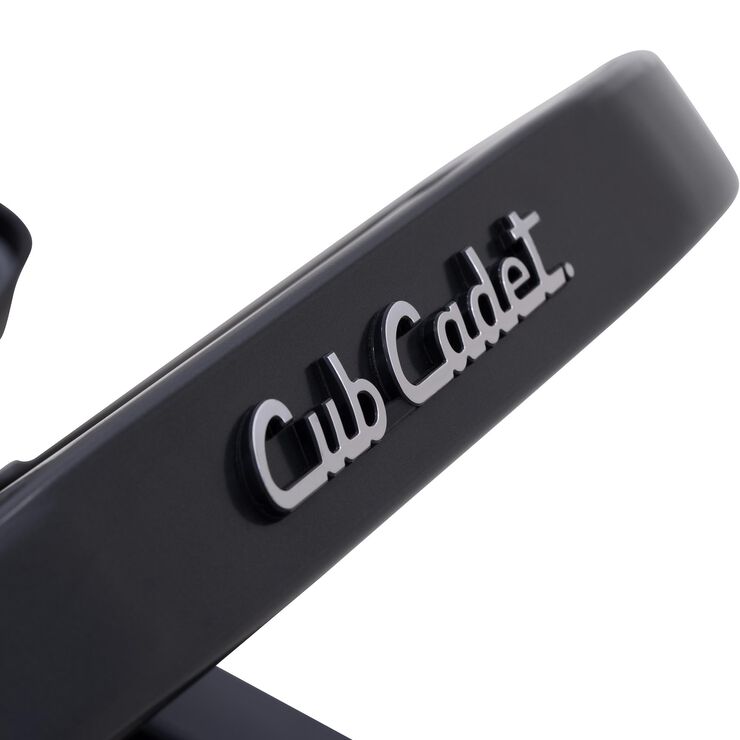

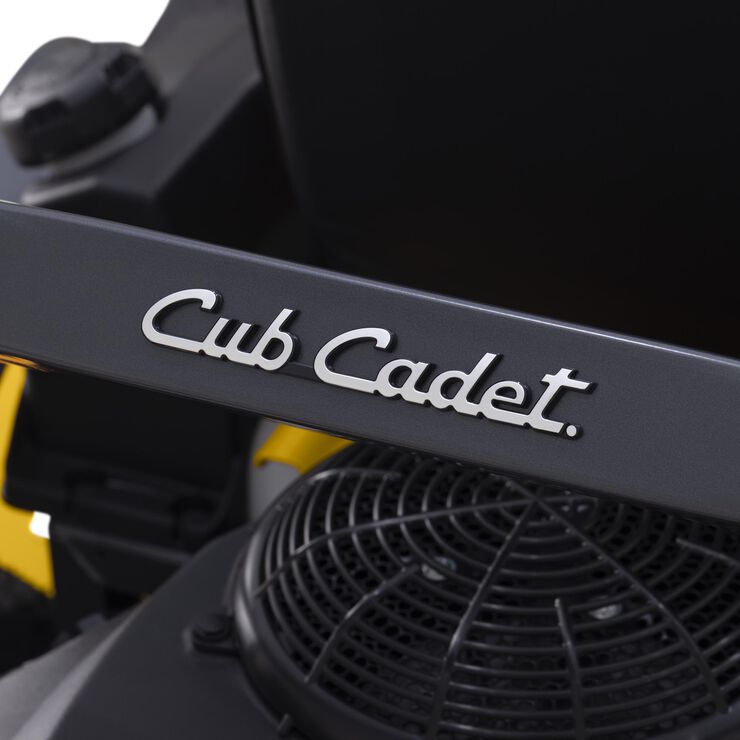

2x2 Tubular Frame
Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.

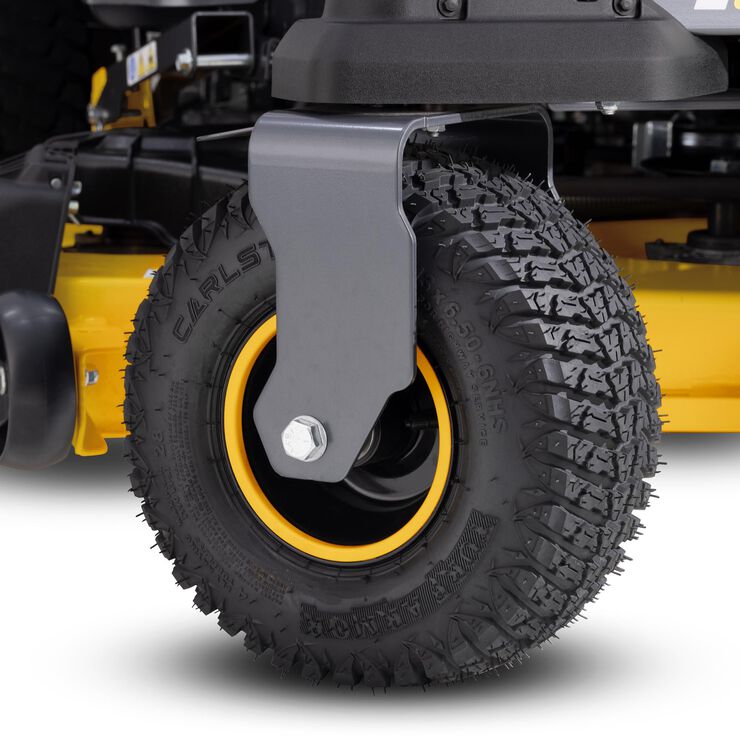

Front Axle
Trim with precision thanks to an offset front axle designed to deliver a quality cut.

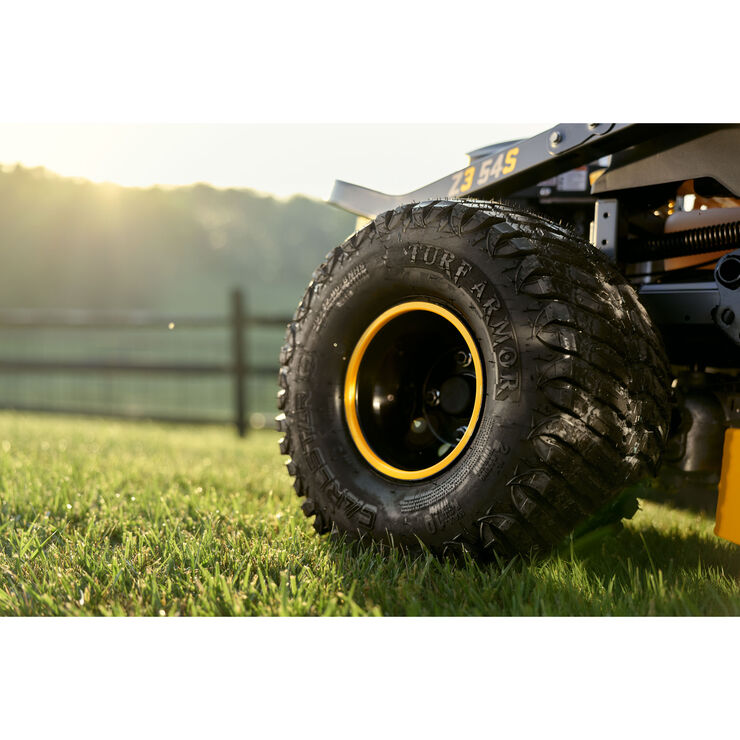

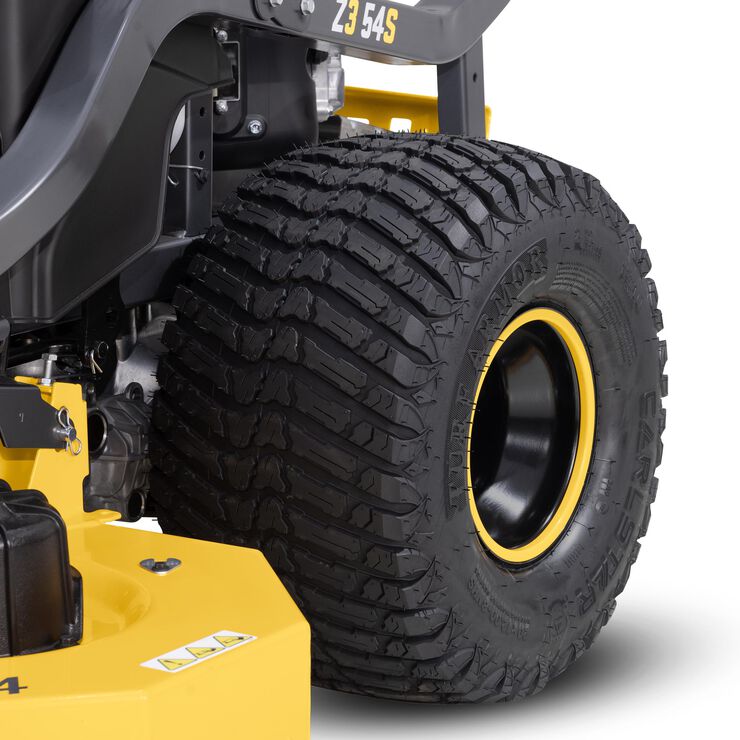

Turf Armor® Tires
Tackle wet, uneven terrain in style with an aggressive tire tread designed to deliver reliable traction and minimize turfing. .

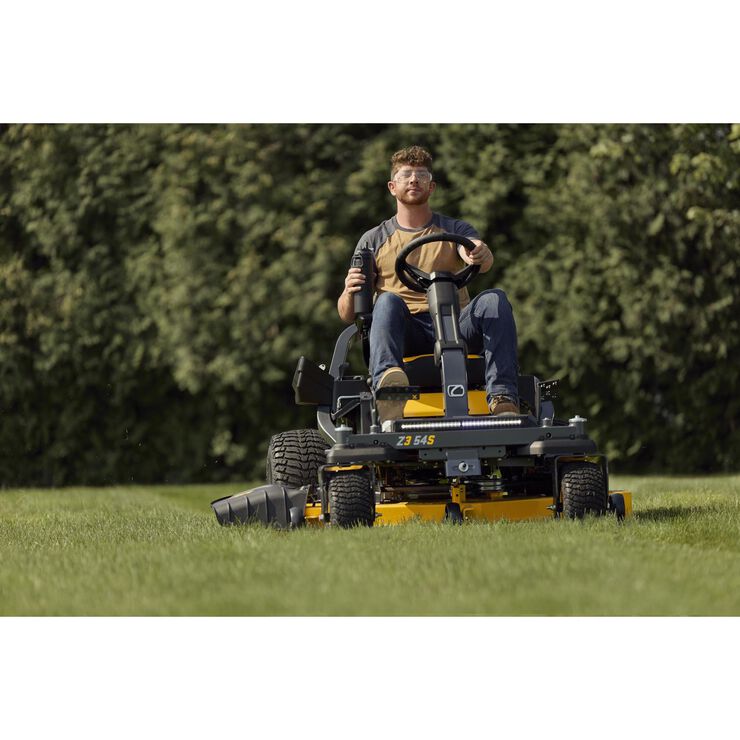

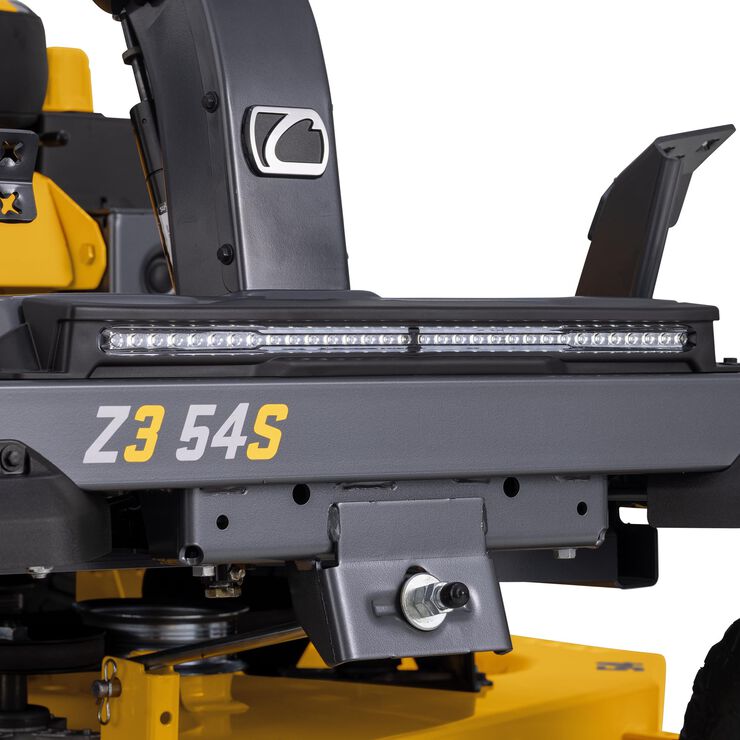

Front LED Bar Headlight
Illuminate your path with a front LED bar built to be 4x as bright.* Engineered for ultimate vision to help see hidden obstacles like tree roots, branches, and rocks in low light.*

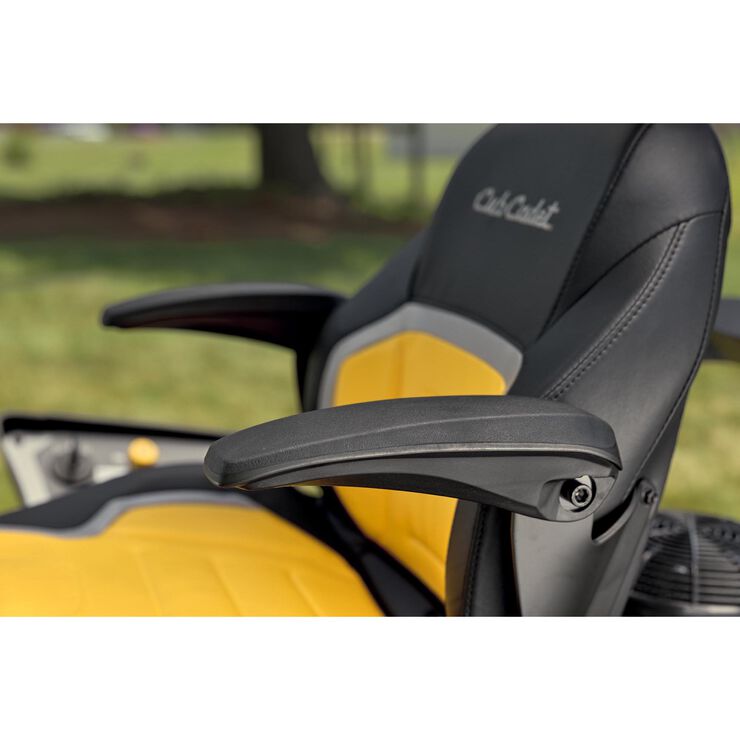

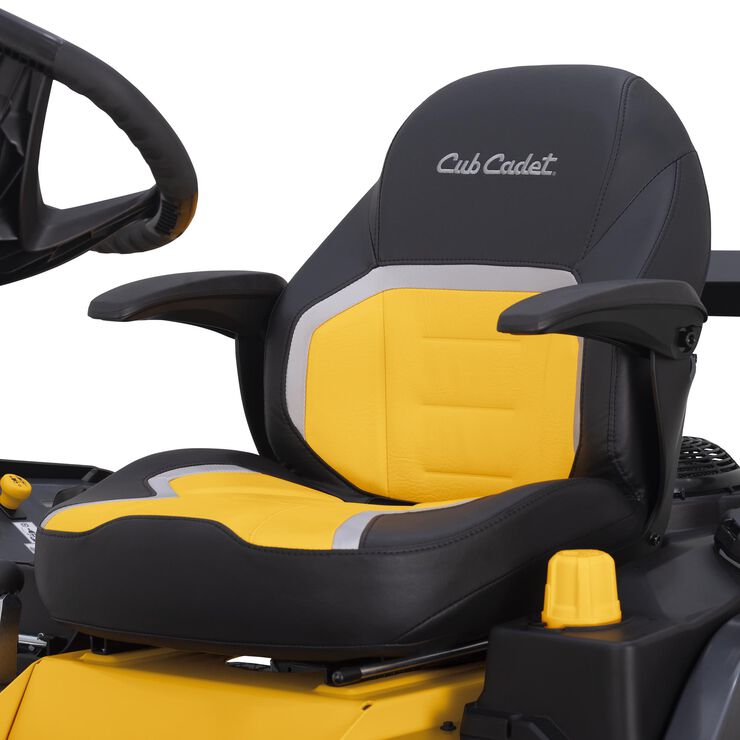

20" High Back Seat with Arm Rests
Mow comfortably with arm rests and an automotive-styled high-back seat equipped with a seat slide and bolstered using a custom foam designed to minimize vibration.

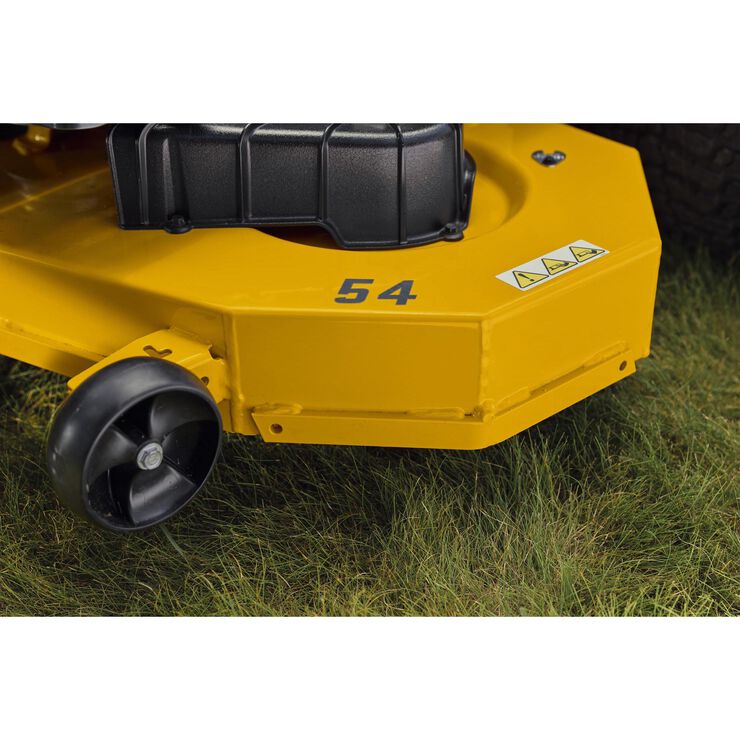

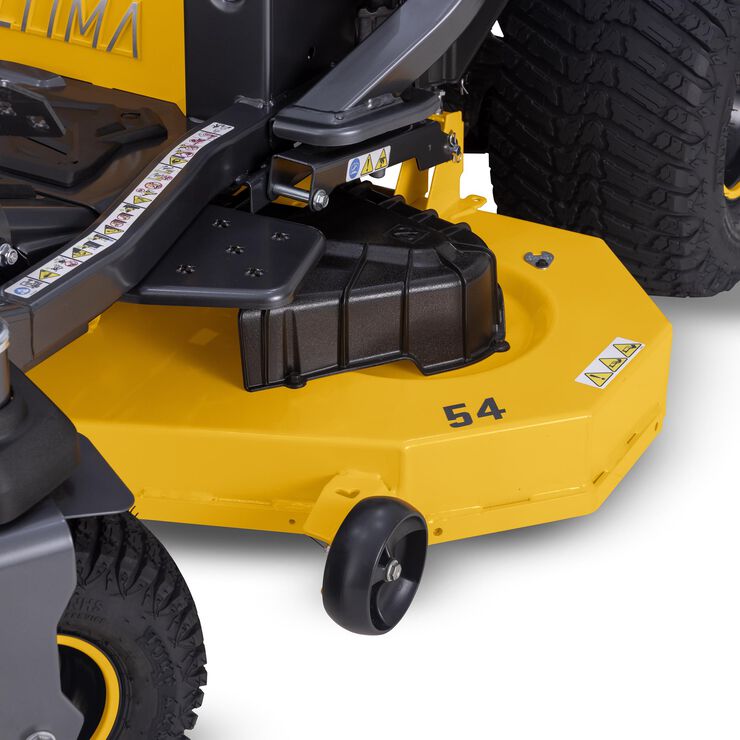

AeroForce™ Reinforced Fabricated Deck
A 10-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Strong Warranty
Backed by a 3-year no hour limit warranty, and lifetime limited frame and deck warranty.

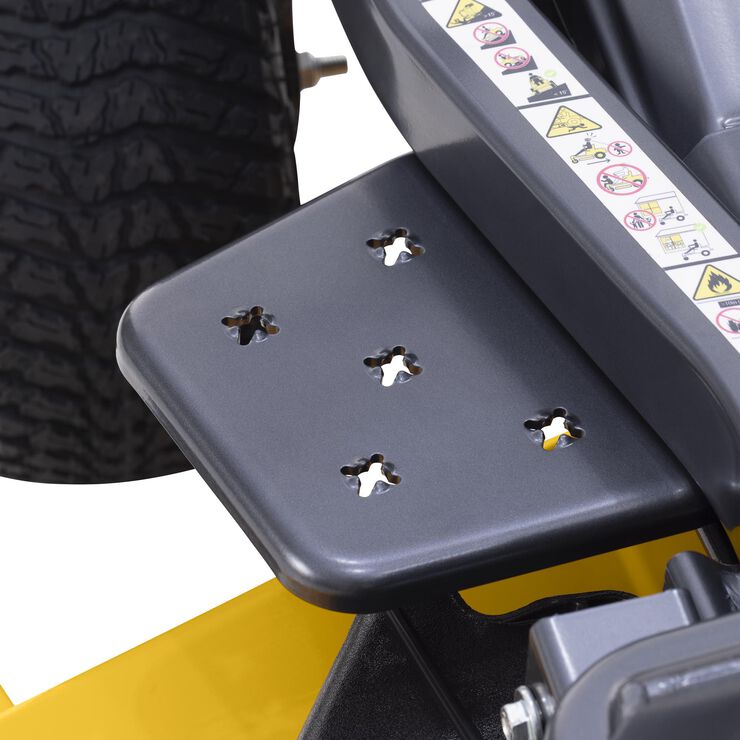

Step Assist
Climb aboard your zero-turn with a step assist that provides a stable and secure foothold.
Smooth Drive
Dual hydrostatic transmissions are designed to eliminate shifting and allow for quick and easy 7 MPH forward (3.5 MPH reverse) ground speeds for a smooth drive.

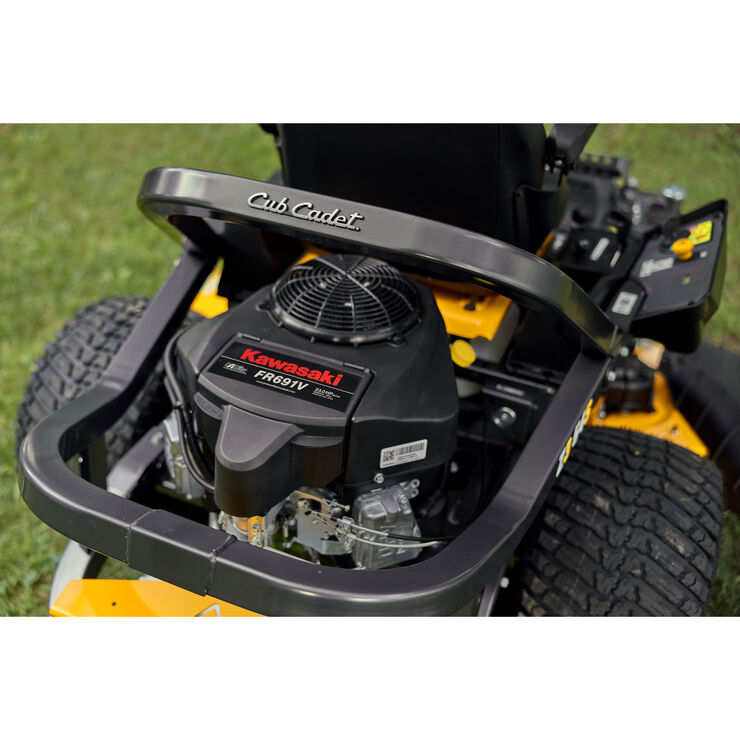

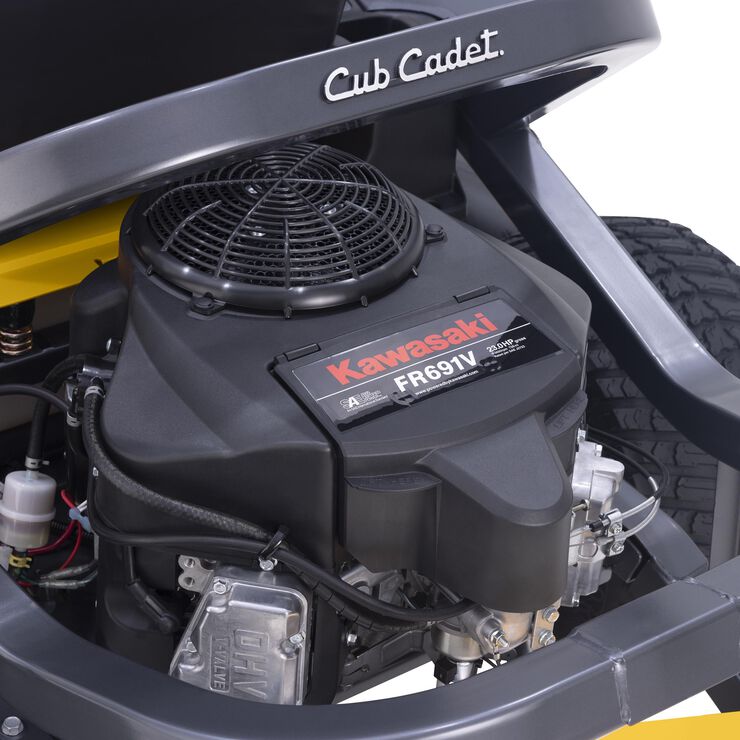

Kawasaki® Engine
The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine.

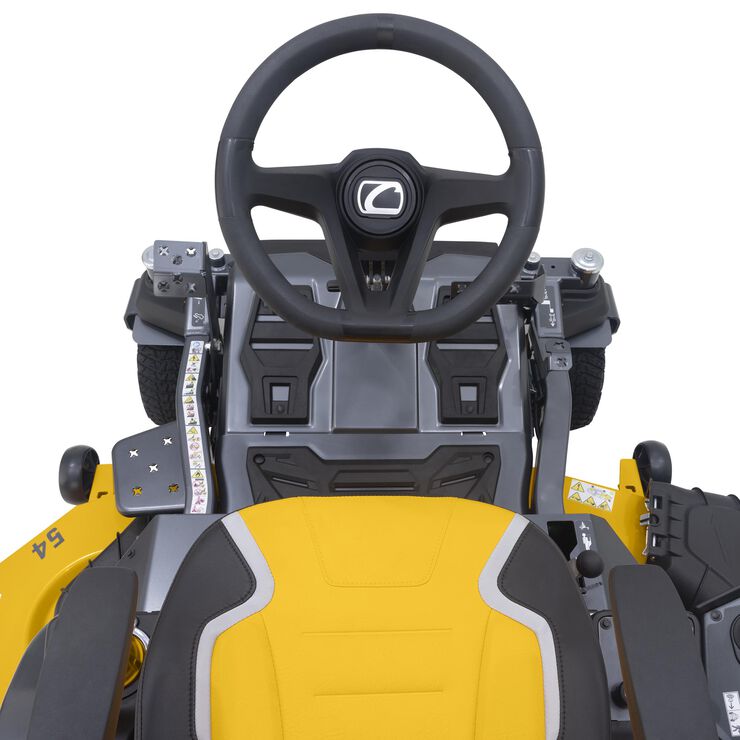

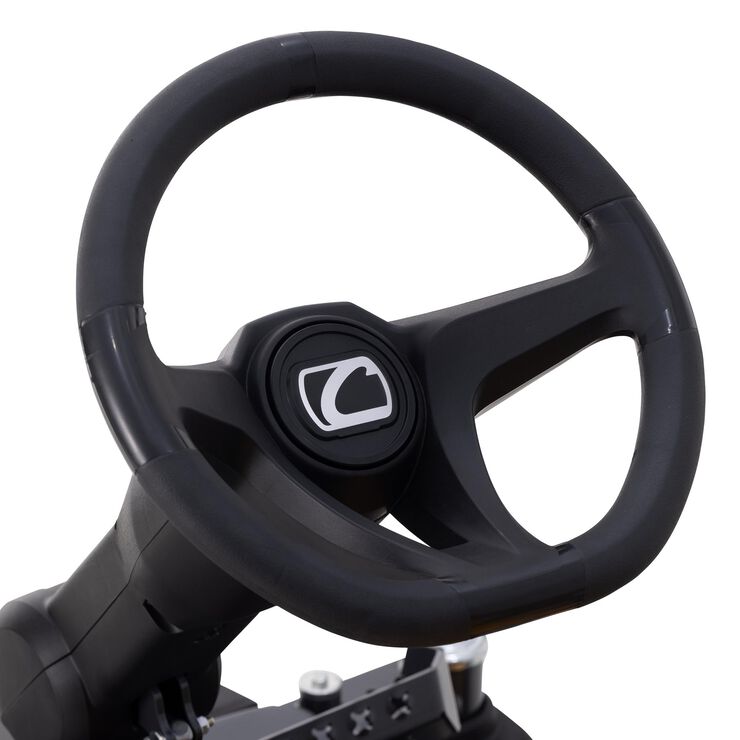

SoftTouch™ Steering

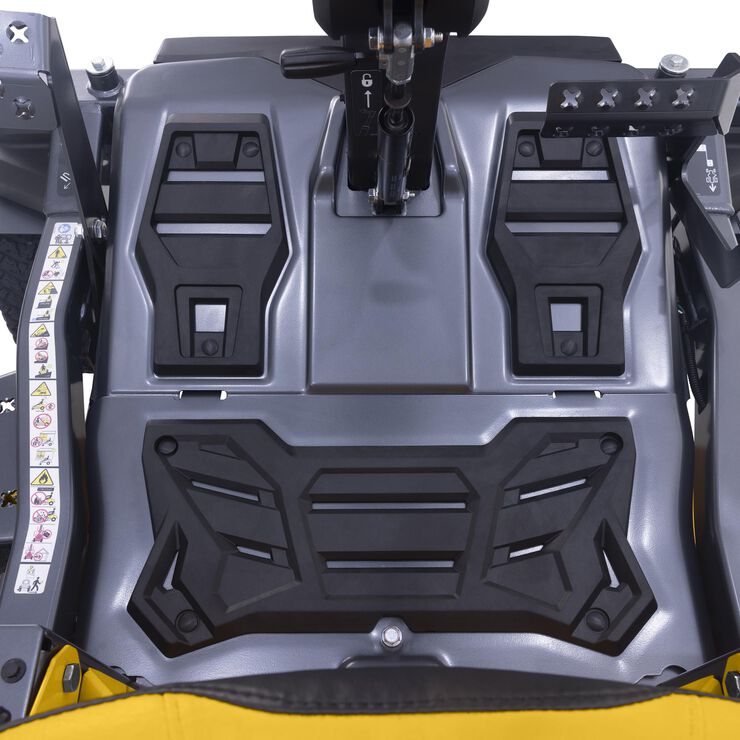

SoftTouch™ steering wheel and vibration-dampening rubber floor mat helps provide sure footing and maximize comfort.
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FR Series
- Engine Model Number 691V
- Engine Displacement 726cc
- Engine Output 23HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.1 qt US ( 2 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Separate Choke
- Air Filter Single element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 230 CCA
- Battery Type Lead Acid
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear ZT 2800
- Forward Speed 7 MPH / 11.3 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
- Serviceable Transmission Yes (Serviceable)
Cutting Deck
- Deck Cutting Width 54 in
- Deck Wash No
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Reinforced Fabricated
- Blade(s) Three

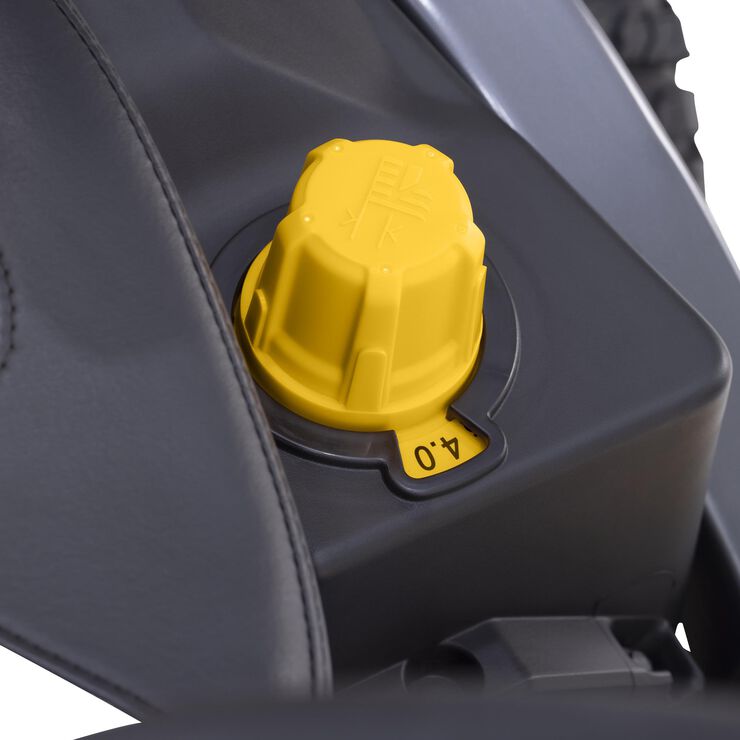

- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1'' - 4.5''
- Anti-Scalping Three gauge wheels
- Deck Positions 15
Chassis
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Caster Yokes 1/4" Steel

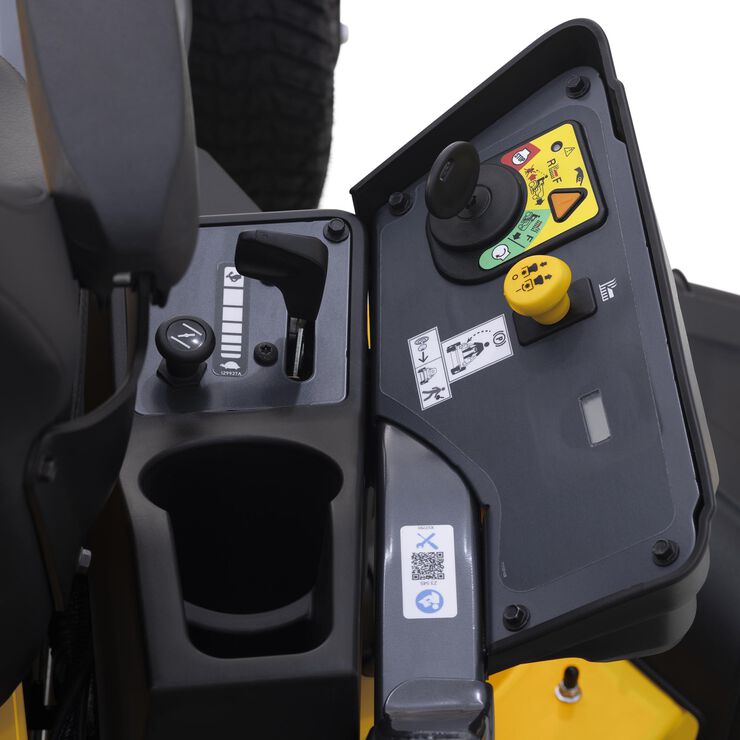

Controls
- Cruise Control No
- Brakes Disc
- Steering Control Steering Wheel
Comfort
- Seat Type 20" Cut-and-Sew with Head Bolster
- Armrests Yes

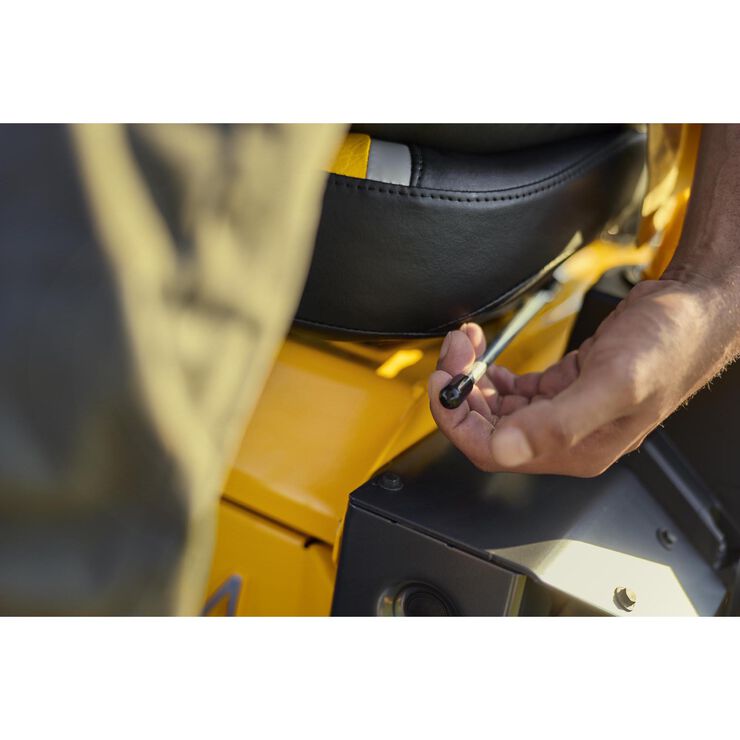

- Seat Adjustment Lever
- Front Caster Suspension No
Wheels
- Rear Tires 20”x 12”-8"
- Front Tires 13"x 6.5"-6"
- Tire Tread Turf Armor
Specifications
- Series Ultima Series™ ZS
Additional Specifications
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) LED Lightbar
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Hand Lever
- Model Number 17CIGGY3A10
Warranty
- Residential Warranty 3-year unlimited hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime Limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower *As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International. Engine power ratings are as certified by the engine manufacturer. Actual operating power may vary. Refer to the engine manufacturer's website for additional information.
-
Quebec Disclosure
CUB CADET® Canada does not guarantee the availability of replacement parts, repair services or information necessary to maintain or repair products subject to and under the meaning of the Quebec Consumer Protection Act, as amended by Bill 29.
CUB CADETMD Canada ne garantit pas la disponibilité de pièces de rechange, de services de réparation ou de renseignements nécessaires à l’entretien ou à la réparation de produits assujettis à la Loi sur la protection du consommateur du Québec, telle que modifiée par le projet de loi 29.
- LED Lightbar Front LED Light Bar vs. Cub Cadet® Classic Twin LED Headlights 625-05041, measured in total lumens.
- Synchro-Steer™ *Synchro-Steer™ available on Cub Cadet Ultima Series™ ZS models
