ZTS2 60
Documents and Guides
- Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
- A 25 HP/725cc Kohler 7000 Series PRO V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
- 60-in. heavy-duty AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
You're shopping available inventory from

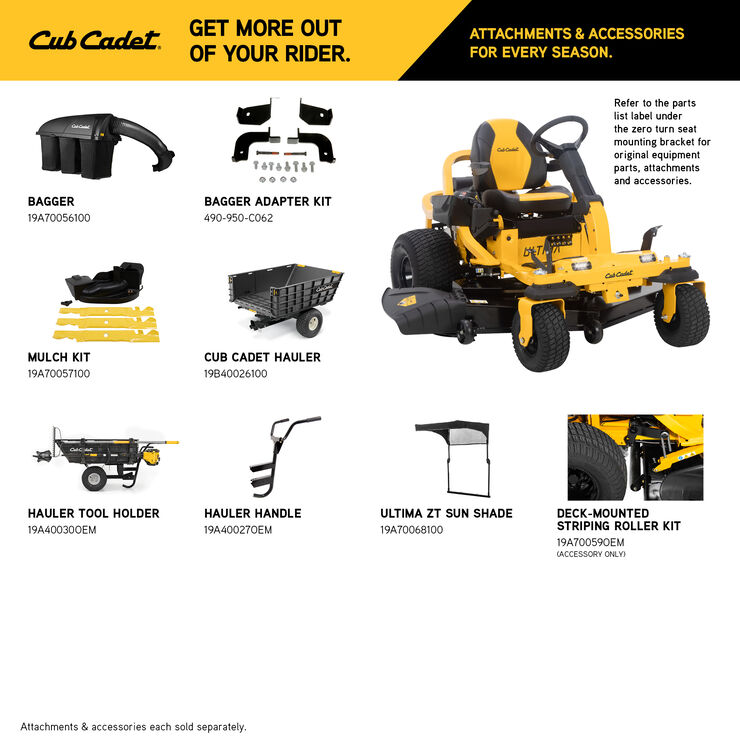

Attachments & Accessories
ZTS2 60 Features
Ride in Comfort
An automotive-inspired, ergonomic, fully adjustable premium 20 in. high-back seat with armrests with an advanced polymer seat suspension system reduces operator fatigue.
Ergonomic Controls
A tilted steering column provides easy steering and greater handling on hills and uneven terrain.
Dual-LED Headlights
Headlights provide ultimate vision for mowing in low light conditions.
One-Hand Operation
Synchro-Steer™ technology allows you to operate your Ultima ZTS with one hand while still mowing in a straight line for an even, consistent cut.
Stability on Hills
Snychro-Steer™ technology delivers unrivaled control and handling of all four wheels, even on hills and slopes of up to 20°.
Built with Strength
A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear.
Versatile
Unlock the full potential of your Ultima ZTS with a variety of attachments and accessories.
Full Control
13 in. front / 20 in. rear Turf Master® 4-ply tires minimize turf damage and provide greater traction and stability on hills.
AeroForce™
Fabricated decks delivers the signature cut you've come to expect from Cub Cadet with fewer clumps and stragglers, finer clippings and increased evenness.
Strong Warranty
Backed by a 3-year no hour limit warranty, and lifetime limited frame and deck shell warranty.
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model 7000 Series PRO
- Engine Model Number KT740
- Engine Displacement 725cc
- Engine Output 25HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear ZT 2800
- Forward Speed 7 MPH / 11.3 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
Cutting Deck
- Deck Cutting Width 60 in
- Deck Wash No
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) 3
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1'' - 4.5''
- Anti-Scalping 3 gauge wheels
- Deck Positions 15
Warranty
- Warranty 3-year unlimited hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime Limited
- Commercial Warranty No
Chassis
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Steering Wheel
Comfort
- Seat Type 20" high back
- Armrests Yes
- Seat Adjustment Lever
Wheels
- Rear Tires 20”x 12”-8"
- Front Tires 13"x 6.5"-6"
- Tire Tread Turf Master / Multi Trac
Additional Specifications
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Hand Lever
- Model Number 17ASGGY5A10
Specifications
- Series Ultima Series™ ZTS
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
How to Change the Air Filter in Zero-Turn Lawn Mower
MAINTENANCE
Changing the air filter in your zero-turn lawn mower is very easy with a little direction. Watch our instructional video that will take you step by step through
How to Change the Deck Belt on a Cub Cadet Zero-Turn Rider
REPAIRS
Change the mower deck belt on your Cub Cadet zero-turn mower with these helpful tips. Cub Cadet has the mower deck parts and advice you need to do a mower deck belt replacement on your own. Learn mower about repairing your
How to Change the Oil on a Cub Cadet Zero-Turn Rider
MAINTENANCE
Learn how to change the oil in a riding lawn mower with instructions from Cub Cadet. Our video and tips make changing the lawn mower oil on your zero-turn
Maintenance Schedule and Tips
MAINTENANCE
Learn how to keep your mower running smoothly with Cub Cadet's zero-turn mower maintenance schedule and tips.
Zero-Turn Operation Tips
TRICKS AND TIPS
Find out how to use a zero-turn riding lawn mower with these tips from Cub Cadet. Zero-turn mowers allow you greater control over your lawn, especially
Model | Manual | Form Number | |
|---|---|---|---|
| 17ASGGY5A10 | MANL:OPER:TRILING:ULTIMAZTS:DI | ||
| MANL:OPER:TRILING:ULTIMAZTS:DI | 769-26093 | Download | |
| MANL:OPER:TRILING:ULTIMAZTS:DI | 769-26093A | Download | |
| MANL:OPER:TRILING:ULTIMAZTS:DI | 769-26506 | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZTS1/ | 769-26262 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZTS1/ | 769-26645 | Download |
