ZTX6 54
Ultima Series™ ZTX
Item#:
47TIAHA7A10
From
$ 13,999.00
MSRP
ZTX6 54
Ultima Series™ ZTX
Item#:
47TIAHA7A10

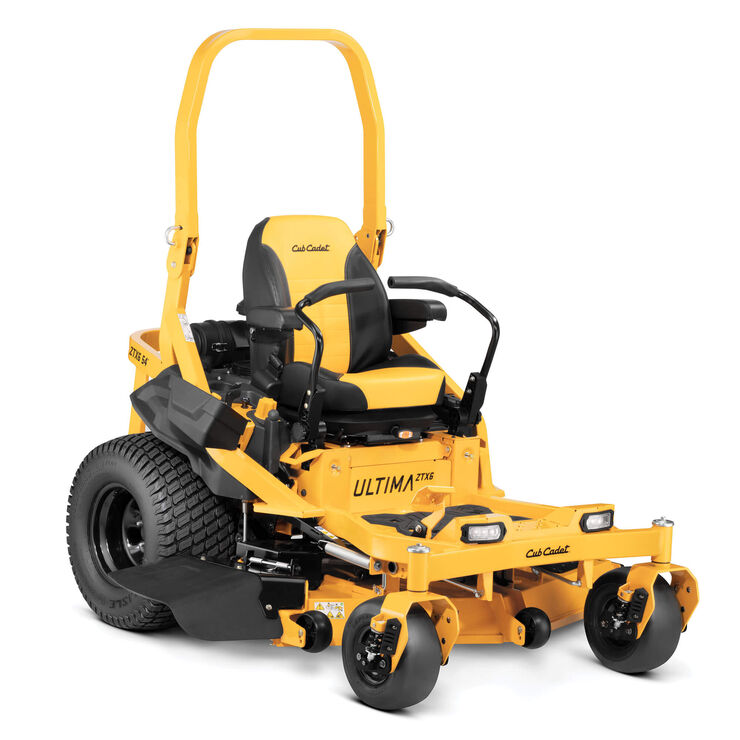

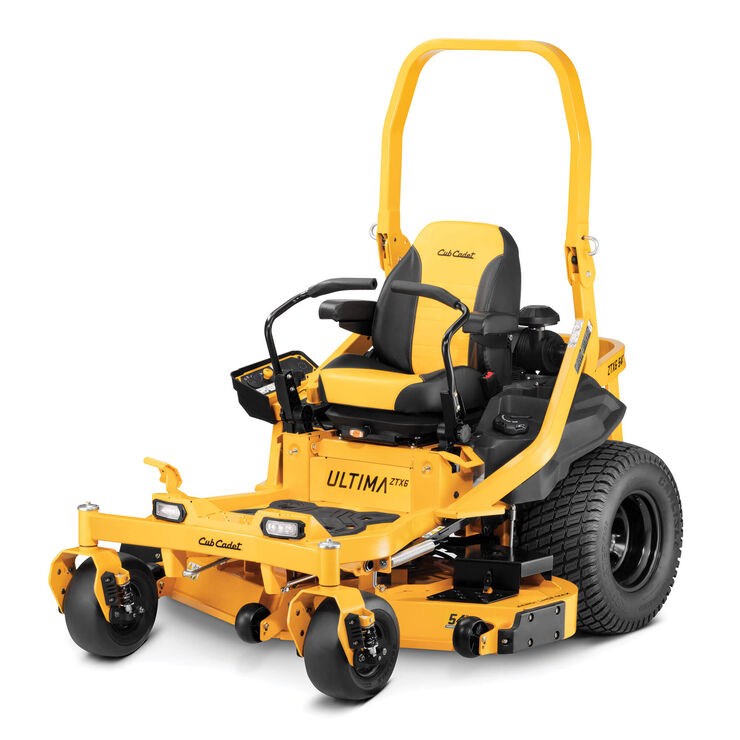

The Cub Cadet® Ultima Series ZTX6 54 54-in. 25.5 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.
Documents and Guides
- A high-strength 1.5 in. x 3 in. tubular steel frame is built to provide strength and rigidity while allowing accessibility for easy routine maintenance
- Commercial grade 852cc/25.5 HP* Kawasaki® FX801 V-Twin OHV engine designed for reliable starting and exceptionally smooth, quiet operation.
- Commercial grade dual hydrostatic rear-wheel transmissions for quick up to 9 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
- Limited 4-year/800 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell
- Zero-Turn Mower
You're shopping available inventory from
Availability:
Delivery in
9-11 days
Pick up in
7-9 days
Ships in
8-10 days
Availability:
Delivery in
9-11 days
Pick up in
7-9 days
Ships in
8-10 days
Attachments & Accessories
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
ZTX6 54 Features

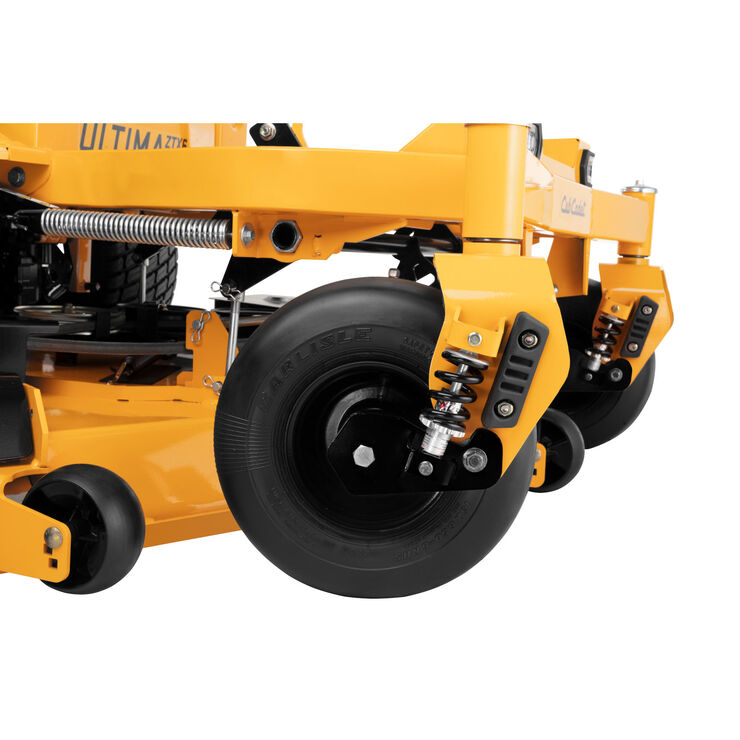

Front Suspension
Independent suspension caster wheels deliver a smooth ride with less vibration on challenging mowing terrains.
Quick-Adjust Lap Bars
No tools needed to quickly adjust your zero-turn’s lap bars for your comfort or for different operators.
Enhanced Traction
Large Turf Master rear tires provide enhanced traction on uneven terrain with minimal grass damage
Rugged Frame
A rugged 1.5 x 3-inch tubular steel frame provides the strength needed for long-lasting use.
AeroForce Max™
A 10-gauge steel fabricated AeroForce Max™ deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Dual LED Headlights
LED headlights come standard on every Ultima Series ZTX™, allowing you to see clearer in low-visibility conditions.
Reduced Vibration
Mow in comfort with overmolded soft-touch hand grips and a rubber floor mat designed to reduce vibration and user fatigue.
Easy Maintenance
Easily access the cutting deck pulleys and belts during maintenance and service intervals.
Hydro-Gear™ ZT 3400 Transmissions
Dual hydrostatic transmissions allows you to reach speeds of up to 9 mph (3.5 mph in reverse) while providing effortless control and a smooth, zero-turn radius for the perfect pass.
Adjustable Suspension Seat
A 24” premium high-back seat, cushioned armrests and dial adjustable suspension system allows you to adjust to your weight for a smoother ride.

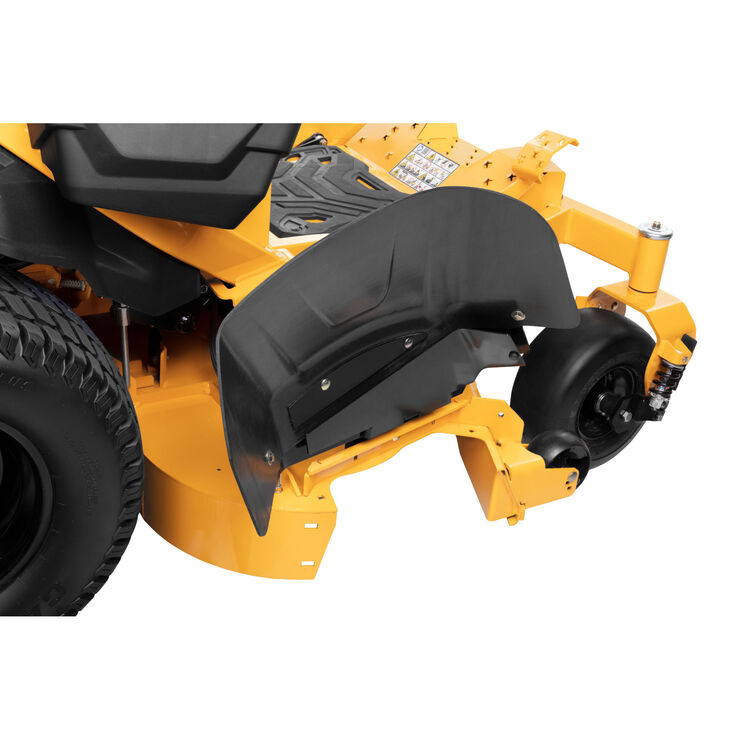

Advanced Grass Collection
The AeroForce Max™ deck top discharge allows for superior flow of grass through the large 9" diameter boot, directly up into the larger capacity bags.
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FX Series
- Engine Model Number 801V
- Engine Displacement 852cc
- Engine Output 25.5HP
- Starter Type Electric
- Fuel Tank Capacity 5.5 gal. US (20.82 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.1 qt US ( 2 L)
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Fuel Gauge Yes
- Governor Mechanical
- Choke Separate Choke
- Air Filter Single element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 230 CCA
- Battery Type Standard Lead-Acid
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear ZT 3400 Charged
- Forward Speed 9 MPH / 14.5 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
Cutting Deck
- Deck Cutting Width 54 in
- Deck Wash No
- Deck Material 10-gauge steel with 2-gauge reinforcement
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) Three
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1" - 4.75"
- Anti-Scalping Three gauge wheels
- Deck Positions 17
Chassis
- Frame 1.5" x 3" tubular steel
- Turning Radius 0°
- ROPS Yes
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
Comfort
- Seat Type 24" high back
- Armrests Yes
- Seat Adjustment Lever
- Front Caster Suspension Yes
Wheels
- Rear Tires 24"x 12"-12"
- Front Tires 13"x 6.5"-6"
- Tire Tread Turf Master / Multi Trac
Specifications
- Series Ultima Series™ ZTX
Additional Specifications
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 47TIAHA7A10
Warranty
- Residential Warranty 4-year 800 hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime limited
- Commercial Warranty 4-year 800 hours
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
Model | Manual | Form Number | |
|---|---|---|---|
| 47TIAHA7A10 | MANL:OPER:TRI:ZTX | ||
| MANL:OPER:TRI:ZTX | 769-26505 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
| SHEET:SUPP:WARR/PARTS:ENG/SP/F | 769-26695A | Download | |
| SHEET:SUPP:WARR/PARTS:ENG/SP/F | 769-26927 | Download |
Product Reviews
Rated 5 out of
5
by
Ralph M from
Worth every penny
Nothing but impressed by this mower. Although this is considered a residential class zero turn there is not a single thing on it that I wouldn't classify as commercial. I am a mechanical individual and fix everything myself and other than routine maintenance I forsee nothing that I would ever break from normal useage unless the operator did something moronic. It's a BATTLE AXE!. When time comes to do maintenance it will actually be a pleasure to service. It was designed as if the designers themselves would have to work on it someday and that in itself is a 5 star. I used to dread mowing my lawn. Now I actually enjoy it. Some ear muffs with music and you'll almost want to mow your neighbors for them when your done. Thank you cub cadet, yes it's expensive but you get what you Pay for and I learned that with my last mower.
Date published: 2024-06-24
