ZTX6 60
- Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
- Commercial-grade 25.5HP Kawasaki® FX801 V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
- Commercial-grade dual Hydro-Gear® ZT-3400 hydrostatic rear-wheel transmissions for quick and effortless up to 14.5 km/h forward and 5.6 km/h reverse zero-turn controlled ground speeds.
- Four-year/500 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell give you peace-of-mind
- Ideal for 4-12 acres with slightly rolling hills and several obstacles
You're shopping available inventory from
Attachments & Accessories
ZTX6 60 Features
Rugged Frame
A rugged 1.5 x 3-inch tubular steel frame provides the strength needed for long-lasting use.
Hydro-Gear™ ZT 3400 Transmissions
Dual hydrostatic transmissions allows you to reach speeds of up to 9 mph (3.5 mph in reverse) while providing effortless control and a smooth, zero-turn radius for the perfect pass.
AeroForce Max™
A 10-gauge steel fabricated AeroForce Max™ deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Front Suspension
Independent suspension caster wheels deliver a smooth ride with less vibration on challenging mowing terrains.

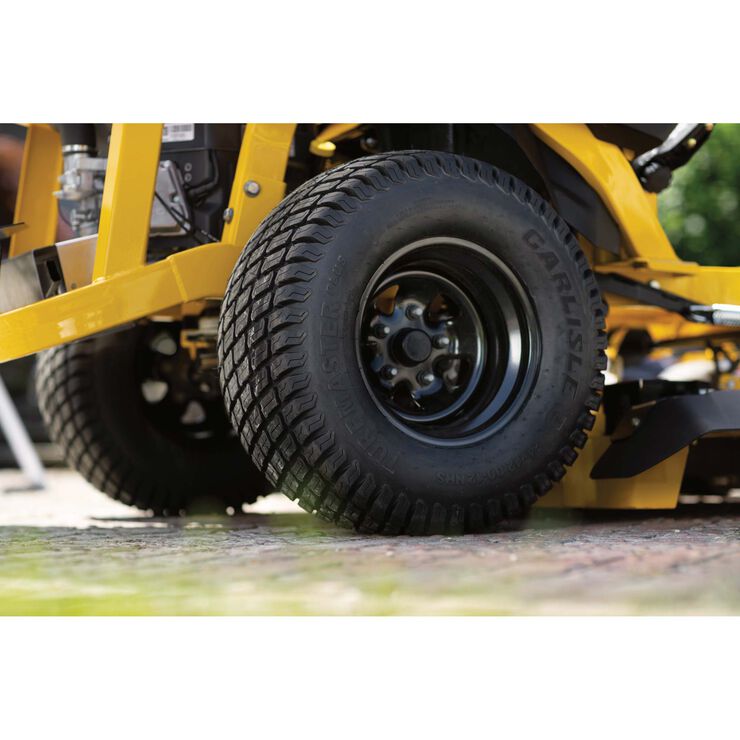

Enhanced Traction
Large Turf Master rear tires provide enhanced traction on uneven terrain with minimal grass damage
Quick-Adjust Lap Bars
No tools needed to quickly adjust your zero-turn’s lap bars for your comfort or for different operators.

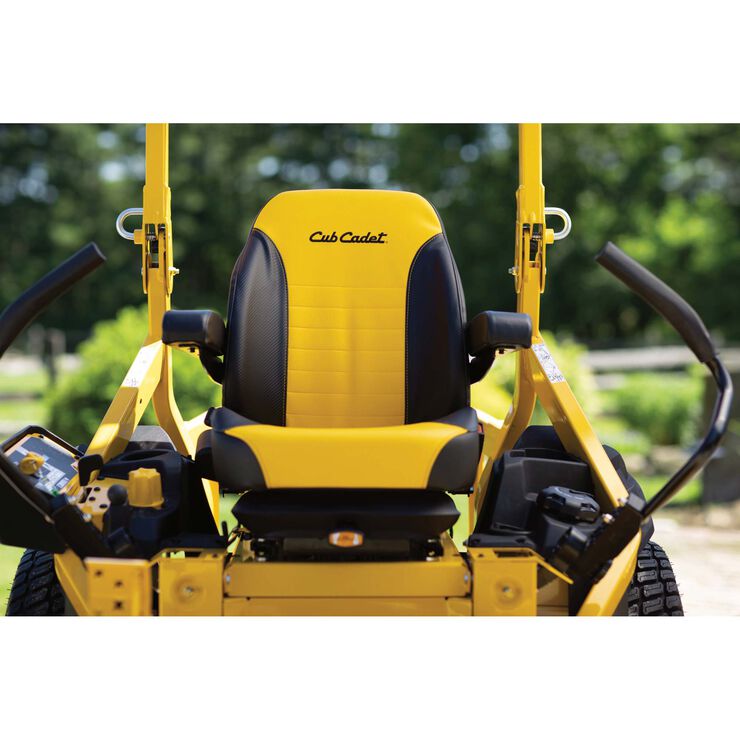

Adjustable Suspension Seat
A 24” premium high-back seat, cushioned armrests and dial adjustable suspension system allows you to adjust to your weight for a smoother ride.
Dual LED Headlights
LED headlights come standard on every Ultima Series ZTX™, allowing you to see clearer in low-visibility conditions.
Reduced Vibration
Mow in comfort with overmolded soft-touch hand grips and a rubber floor mat designed to reduce vibration and user fatigue.
Easy Maintenance
Easily access the cutting deck pulleys and belts during maintenance and service intervals.
Advanced Grass Collection
The AeroForce Max™ deck top discharge allows for superior flow of grass through the large 9" diameter boot, directly up into the larger capacity bags.
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FX Series Twin Kaw
- Engine Model Number SFX801S255
- Engine Displacement 852cc
- Engine Output 25.5HP
- Starter Type Electric
- Fuel Tank Capacity 5.5 US gal. / 20.80 L
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.1 qts. US ( 2 L)
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Separate Choke
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Dual Hydro-Gear™ ZT3400
- Forward Speed 8 MPH / 12.9 KMH
- Reverse Speed 3.5 mph / 5.6 km/h
- Rear Axle 1.125"
- Drive System Hydrostatic
- Transmission Housing Cast aluminum
Cutting Deck
- Deck Cutting Width 60 in
- Deck Wash No
- Deck Material 10-guage steel
- Deck Engagement (PTO) Electric
- Deck Construction Reinforced Fabricated
- Blade(s) 3
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1" - 4.75"
- Anti-Scalping 3 gauge wheels
- Deck Positions 16
Warranty
- Warranty 4-year/500 hour
- Frame Warranty Limited lifetime
- Deck Shell Warranty Lifetime limited
- Commercial Warranty No
Chassis
- Frame Rectangular 1.5"x 3" tubular upper and lower frame structure
- Turning Radius Zero°
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
Comfort
- Seat Type 20" Premium High-back
- Armrests Yes
- Seat Adjustment Lever
Wheels
- Rear Tires 24 x 12 - 12 po
- Front Tires 13"x6.5"-6"
- Tire Tread Turf Master/Multi Trac
Additional Specifications
- Mulch Kit Available separately
- Headlight(s) Dual LED
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 47AIAHA8596
Specifications
- Series Ultima Series ZTX
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
