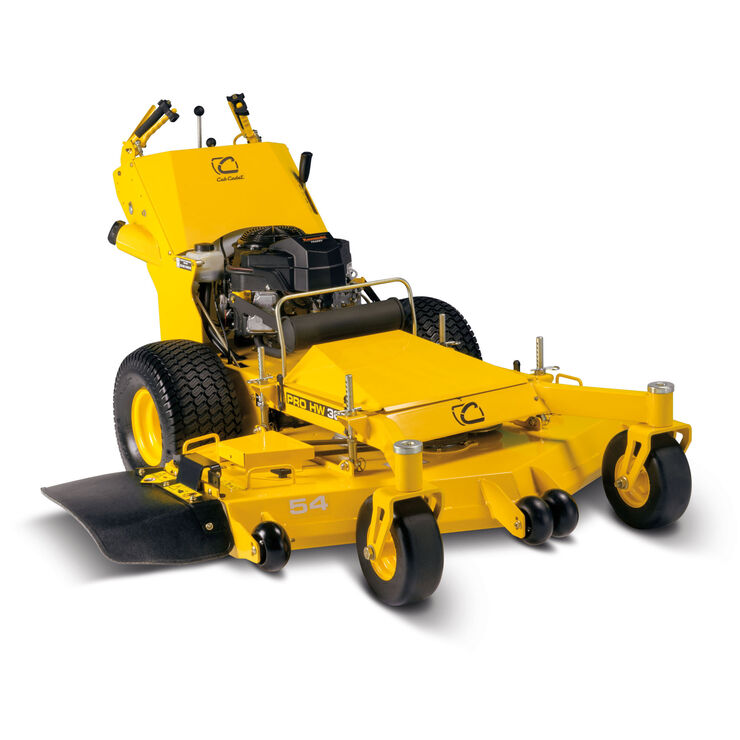

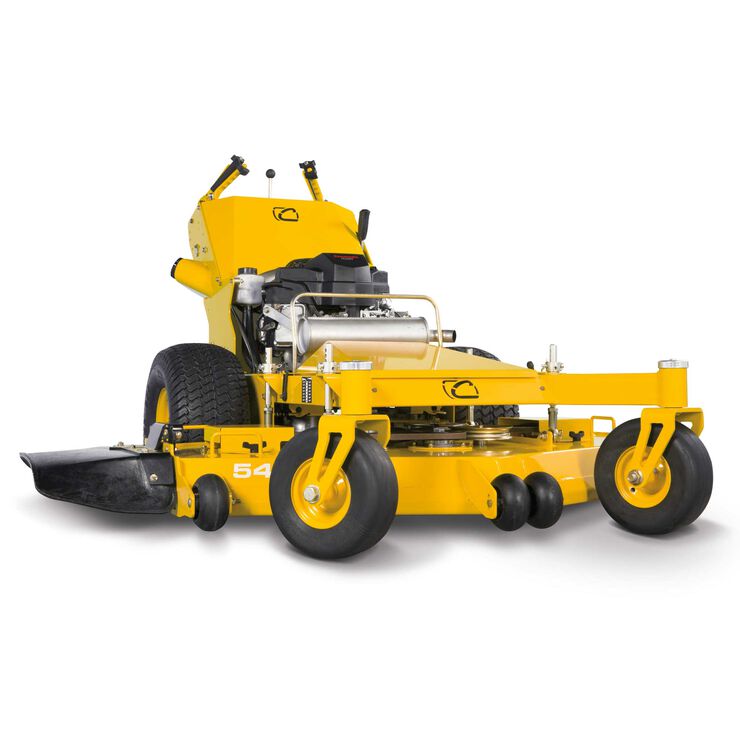

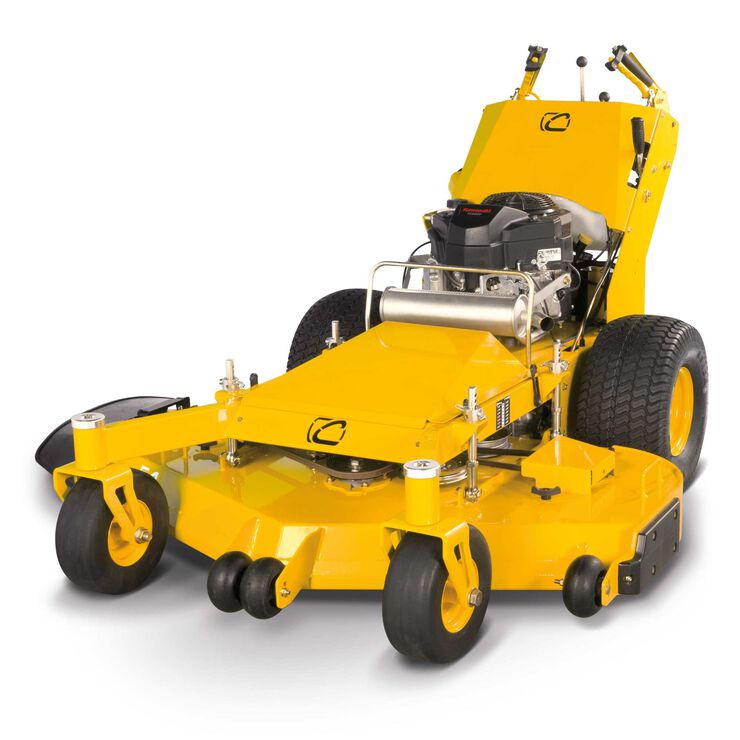

PRO HW 354
Specs & Maintenance
- Engine Brand Kawasaki®
- Engine Model Number 752SFS600S345
- Engine Model FS-600v
- Engine Displacement 603cc
- Engine Output 18.5 HP
- Fuel Tank Capacity 5 gal. US (18.9 L)
- Engine Start Electric Start
- Lubrication Full - Spin On
- Transmission Hydro-Gear® ZT 2800 charged (commercial-grade)
- Forward Speed 7 mph / 11.3 km/h
- Reverse Speed 3 mph / 4.8 km/h
- Deck Cutting Width 54 in
- Deck Material Fabricated
- Deck Construction Fixed floating, fabricated 10ga. (.135”) steel shell
- Spindle Construction 5" sealed cast aluminum housing (maintenance-free)
- Blade(s) 3 high-lift Marbain® blades / 18,500 fpm (approx.)
- Cutting Height Range 1.5" - 4.5"
- Anti-Scalping 2 front deck gauge wheels
- Deck Positions 4-pin manual with deck-mounted lift handles / 7 positions
- Warranty 2 year / no-hour-limit commercial warranty
- Commercial Warranty 2 year / no-hour-limit commercial warranty
- Frame Operator Tower with 7ga. Construction, 1.5 x 3" fully welded tube
- Front Axle Frame-mounted foot pedal front-end lift assist
- Cruise Control Single-lever cruise control (0-7 MPH)
- Brakes Hand-operated lever
- Steering Control Hand-lever steering control with ball bearing linkage for smooth feel
- Dimensions L/W/H 77" x 50"/61" x 46"
- Weight (approx.) 665 lbs
- Hour Meter Basic Hour Meter (no tach)
- Discharge Chute High-density, impact-resistant rubber
- Model Number 55RI6HNV050
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
|55RI6HNV050||MANL:OPER:ENGL:PRO HW 300|
|MANL:OPER:ENGL:PRO HW 300||769-12891||Download|
|MANL:OPER:ENGL:PRO HW 300||769-17794A||Download|
|MANL:OPER:ENGL:PRO HW 300||769-25926||Download|
|MANL:OPER:FRENCH ONLY:PRO HW 300||769-12891_FR||Download|
|MANL:OPER:FRENCH:PRO HW 300||769-25926_FR||Download|
