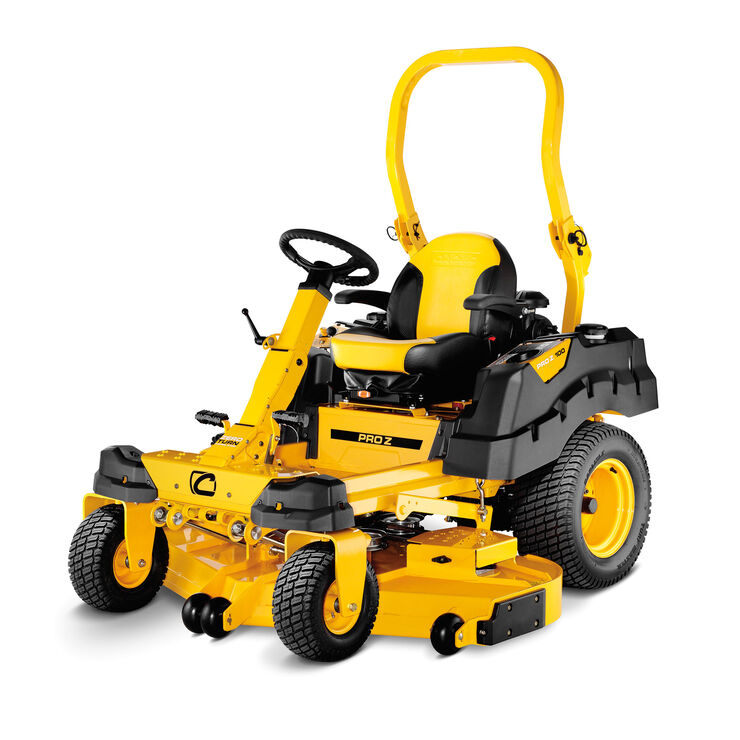

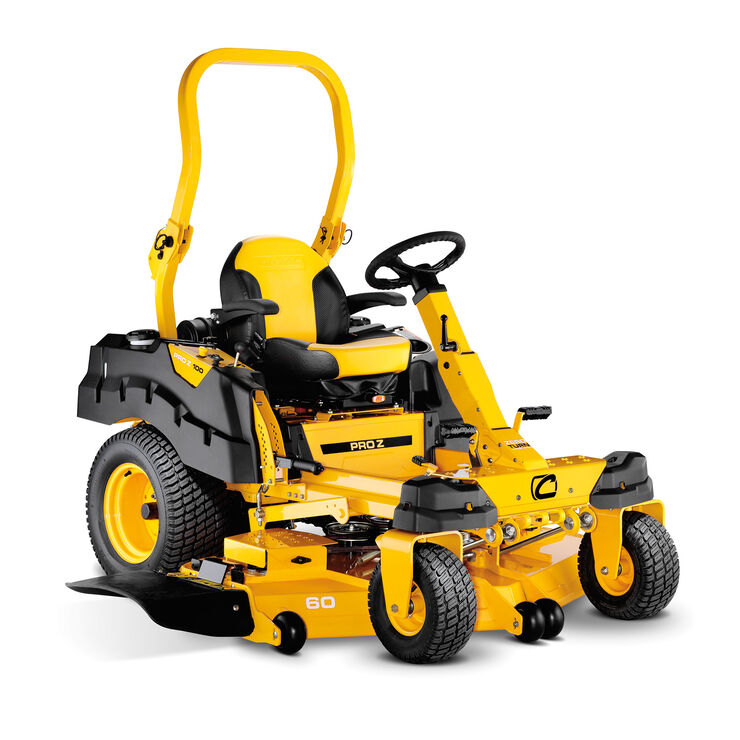

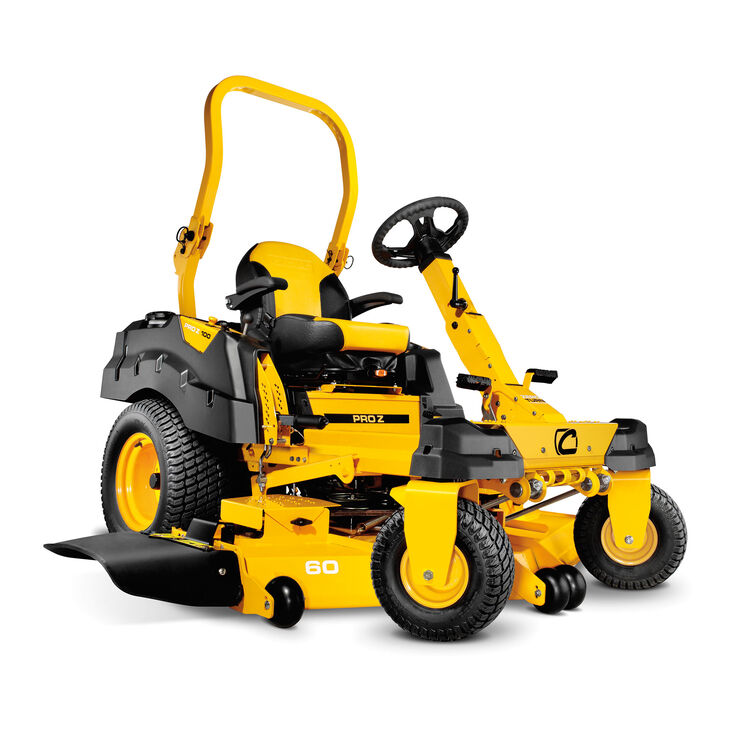

PRO Z 160 S EFI
PRO Z 100 S SERIES
Item#:
53TWEFJU050
PRO Z 160 S EFI
PRO Z 100 S SERIES
Item#:
53TWEFJU050
- Commercial-grade 27 HP Kohler EFI engine
- 60-inch 10-gauge steel commercial deck with top, bottom and side reinforcements for added durability
- 12cc commercial-grade transmission ensures optimal blade tip speed and superior quality of cut at speeds up to 9.5 mph
You're shopping available inventory from
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model Confidant EFI
- Engine Model Number EZT750
- Engine Displacement 747cc
- Engine Output 27HP
- Fuel Tank Capacity Dual 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Fuel Gauge No
- Choke Auto-Choke
- Air Filter High Density
- Oil Filter Yes
- Fuel Delivery Electronic Fuel Injection (EFI)
Drive System
- Transmission 12cc Hydro-Gear® ZT 3400 with charge pumps
- Forward Speed 9.5 mph / 15 km/h
- Reverse Speed 4.5 mph / 7 km/h
Cutting Deck
- Deck Cutting Width 60 in
- Deck Engagement (PTO) electronic fingertip engagement pto
- Deck Construction Floating, fabricated 10ga. (.135”) steel shell (e-coated)
- Spindle Construction 5" sealed cast aluminum housing (maintenance-free)
- Blade(s) 3 high-lift Marbain® blades / 18,500 fpm (approx.)
- Cutting Height Range 1” to 5” in 1/4” increments
- Anti-Scalping 4 Front HD w/ Bushings & Grease Zerk
- Deck Positions Hand Lever / 15 position / spring assist
Warranty
- Warranty 4-year/500-hour limited residential warranty
- Commercial Warranty 2-year limited commercial warranty (no hour limitations)
Chassis
- Frame Fully welded, full-legnth 12ga. channel frame with 14ga. reinforcements
- Front Axle 2" x 3" solid steel
- ROPS 2" x 2" quick-latch tool-less foldable 3 position
- Bumper 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Yokes 3/8" thick steel with sealed ball bearing front yokes
Controls
- Cruise Control Standard - Foot operated pedal engagement
- Brakes Foot-operated pedal
- Steering Control High Performance Steering Wheel with Foot-pedal Control
Comfort
- Seat Type High-back with seat belts
- Armrests adjustable arm rests
- Seat Suspension High-back suspension
Wheels
- Rear Tires 23"x 10.5"-12"
- Front Tires 13"x6.5"-6" turf
- Tire Tread Turf Master
Dimensions
- Dimensions L/W/H 80" L x 62" W x 48" H
- Weight (approx.) 1000 lbs.
Additional Specifications
- Hour Meter Basic Hour Meter (no tach)
- Discharge Chute High-density, impact-resistant rubber
- Cup Holder Intergrated into Side Pod
- Model Number 53TWEFJU050
Disclaimer
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 53TWEFJU050 | MANL:OPER:ENGL:CC PRO Z 100 | ||
| MANL:OPER:ENGL:CC PRO Z 100 | 769-12380 | Download | |
| MANL:OPER:ENGL:CC PRO Z 100 S | 769-24910 | Download | |
| MANL:OPER:ENGL:CC PRO Z 100 S | 769-24910A | Download | |
| MANL:OPER:ENGL:CC PRO Z 100 S | 769-26271 | Download | |
| MANL:OPER:FRENCH ONLY:CC PRO Z 100 | 769-12380_FR | Download | |
| MANL:OPER:FRENCH:CC PRO Z 100 S | 769-24910A_FR | Download | |
| SHEET:SUP:BILING:EPA:EVP:06301 | 769-15171 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-17171 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download |
Product Reviews
Rated 5 out of
5
by
Thebozster from
Outstanding mower
I bought this a month ago and I love it. First of all, the unit is built like a tank. It's built with heavy gauge steel all the way around. The deck is solid as a rock. My yard has never looked better after a cut plus it takes half the time to cut my lawn than it use to. If I had to complain about anything, it would be that the steering is a little hard, kind of like a car with no power steering. Also, it would have been nice if they added a deck wash connector. These are minor issues though. Other than that, the mower is awesome!!!
Date published: 2019-06-11
Rated 5 out of
5
by
chuck1 from
Can’t beat this machine on hilly terrain!
This mower is built to last, I’ve had this machine for 3 seasons now and it still looks brand new. I live in western Pa and I have a typically hillly yard. This is the only mower I’ve never got stuck, up, down, sideways... I’ve never felt unstable. The cutting quality is also awesome.
Date published: 2019-03-02
Rated 5 out of
5
by
dandor from
Top Rate Mower
I have been using this mower for three season. I mow about 4 acres a week, mows even and handles great on the hilly slopes around my pond. I have used to mow around my fields which my pull behind mower can't get to, no problem getting through tall field grass. Everyone in the family can operate easily. No issues at all. Just change the oil and lube and it will run forever. Very satisfied and highly recommend.
Date published: 2019-06-10
Rated 4 out of
5
by
Buyacub from
Steering wheel a must for all ages
Thank you Cub Cadet for continuing to out cut the competition. Lap bar units are great but aren't for everyone . My family loves to drive this cutter with its steering wheel Grandma is 77 and my daughters are 14 and 16. They are always in a rush to cut grass and zip around on this great EFI machine. Starts the first time , every time !!! Blades are still sharp after 22 hours of use. It's a buzz saw, tearing through 5 foot high Timothy hay in those hard to get places that the big tractor can't get into. I've cut in the rain and the deck sheds the clumps. Clean outs are easy with the removable covers that allow operators to easy access to pullies and hubs . The seat soaks up the bumps . I bought the 60 inch cutter and cut about 8-10 acres every 2 weeks about when the grass is about ten inches tall. I'm using this on a small farm and it replaced my ride on tractor I bought from a competitor w a 48 cut belly mower w green and yelllow . With zero percent financing for 48 months how could I go wrong . You won't be disappointed.
Date published: 2017-03-08
Rated 5 out of
5
by
tater smitty from
best mower i ever had or will have. Too bad
too bad they stopped making it.its a great and powerful mower i like to cut grass now. that i have my PRO Z 160 with that 60 INCH DECK MOWER. It s a treat.
Date published: 2019-09-09
Rated 5 out of
5
by
Gary1975 from
The EFI engine is awesome!
This mower is awesome had mine for a year now and it’s performed awesome. The EFI engine is great responds quickly under a load and seems to use less fuel that carberated models. Holds a hill like no other brand!
Date published: 2019-07-06
Rated 5 out of
5
by
Plantz from
great features
I bought this mower for residential use and I have to say this was my first zero turn, and I am very well please with it .
Date published: 2018-07-07
Rated 5 out of
5
by
Grass Slayer from
1000 lbs of love
Well, been wanting one for 3 years and finally got one and I can say this thing is awesome. I have had it for only a Month and had no problems yet . This pro z 160 is a pleasure to use , rides nice, cuts grate . My yard looks like the White House lawn now .
I got around 3 acres + or - to Mow , it only takes about an hour and 15 mins to do when it took 2 1/2 in the past . EFI motor uses little gas , about 1 1/2 gal. Love the seat too , the discharge cover, no more braking that. After mowing I alway tell my wife , is it going to rain today , cause I can’t wait to use it again.
Thanks Cub cadet for a good Mower, it’s appreciate and well cared for , I believe it will last a long time ,very well built, heavy
Duty thats a fact.
Date published: 2020-07-30
