- 22 HP 725cc Kohler KT7000 Series V-twin Engine
- Ideal for mowing Slight rolling hills and several obstacles up to 2 acres
- EASE OF MAINTENANCE an open frame design and hinged/removable floor pan allow easy access to the deck and engine for quick and simple maintenance.
- Lap Bar Controlled Dual-Hydro Transmissions with Mow-In-Reverse

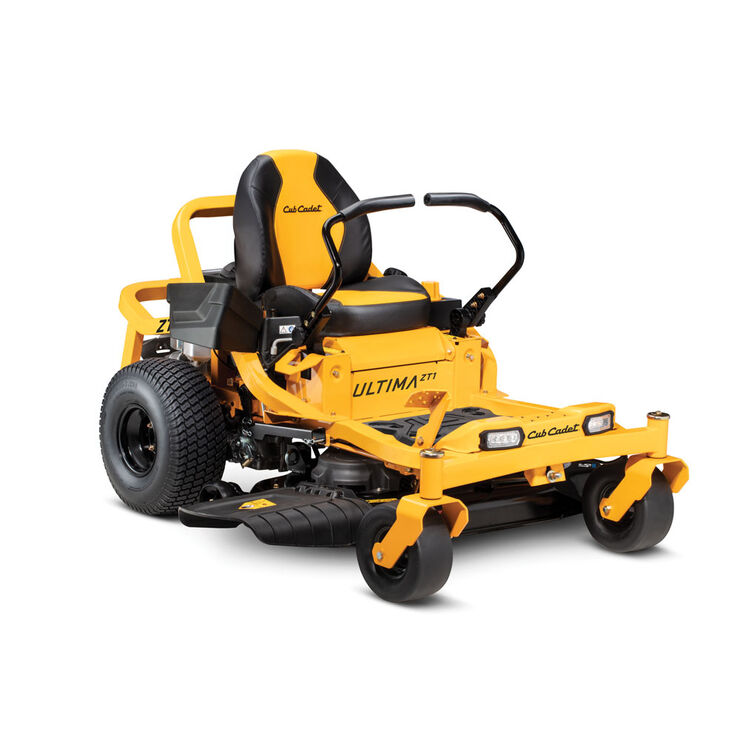

ZT1 46 Features
Built with Strength
Our continuous square tubular frame was designed for enhanced strength and durability.
Settle in to a fully adjustable command center and experience next-level comfort designed for optimized speed and control from head to toe.
The Aeroforce™ cutting system results in finer clippings, fewer clumps, reduced stragglers and increased evenness. Fully welded and fabricated with a limited lifetime fabricated deck shell warranty.
Specs & Maintenance
- Engine Brand Kohler®
- Engine Model V-Twin KT-7000 OHV
- Engine Displacement 725cc
- Fuel Tank Capacity 3.5 US gal. / 13.25 L
- Cylinders/Material 2/cast-iron sleeve
- Engine Start Electric
- Lubrication Full-pressure with spin-on oil filter
- Charging System 15 amp. regulated
- Fuel Gauge Standard (sight window in tank)
- Battery Voltage 12V/heavy-duty 230 cold crank amp.
- Battery 12V / 230 cold crank amps
- Transmission Dual Hydro-Gear™ EZT-2200
- Forward Speed 7 mph / 11.3 km/h
- Reverse Speed 3.5 mph / 5.6 km/h
- Deck Cutting Width 46-in
- Deck Wash Patented SmartJet™ high-pressure deck washing system
- Deck Engagement (PTO) Electronic fingertip engagement
- Deck Construction Fabricated
- Blade(s) 2
- Deck Lift Foot operated lift with 15 position dial height adjust
- Cutting Height Range 1.5" - 4.5"
- Anti-Scalping 2 Front Ball
- Frame Heavy-Duty 2"x 2" Tubular Frame with E-Coating Corrosion Defense System
- Front Axle 2" x 2" Tubular Frame, Offset to Maximize Trim Edge and Cut Quality
- Turning Radius Zero
- Front Tires 11" x 6" - 5" smooth
- Rear Tires Turf Master, 20" x 8" - 8"
- Protection Standard
- Rear Tow Hitch Standard
- Cruise Control No
- Brakes Integrated parking brake in lap bars
- Steering Control 3-way adjustable lap bars (no tools required)
- Mow in Reverse RevTEK™ reverse mowing technology
- Seat Type Premium High Back Adjustable Seat with Patented Suspension System
- Armrests No
- Weight (approx.) 565 lbs.
- Mulch Kit Optional
- Headlight(s) Dual LED Headlights
- Cup Holder Standard
- Model Number 17AREACN596
- Warranty The Strongest Warranty in it's class 3-year / unlimited-hour warranty
- Frame Warranty Limited lifetime
- Deck Shell Warranty Limited Lifetime Fabricated Deck Shell
How to Change the Air Filter in Zero-Turn Lawn Mower
Changing the air filter in your zero-turn lawn mower is very easy with a little direction. Watch our instructional video that will take you step by step through
How to Change the Deck Belt on a Cub Cadet Zero-Turn Rider
Change the mower deck belt on your Cub Cadet zero-turn mower with these helpful tips. Cub Cadet has the mower deck parts and advice you need to do a mower deck belt replacement on your own. Learn mower about repairing your
How to Change the Gas on a Cub Cadet Zero-Turn Rider
How to Change the Oil on a Cub Cadet Zero-Turn Rider
Learn how to change the oil in a riding lawn mower with instructions from Cub Cadet. Our video and tips make changing the lawn mower oil on your zero-turn
Maintenance Schedule and Tips
Learn how to keep your mower running smoothly with Cub Cadet's zero-turn mower maintenance schedule and tips.
Zero-Turn Operation Tips
TRICKS AND TIPS
Find out how to use a zero-turn riding lawn mower with these tips from Cub Cadet. Zero-turn mowers allow you greater control over your lawn, especially
IMPORTANT INFORMATION - PLEASE READ CAREFULLY
The Operator's Manual is an important part of your new outdoor power equipment. It will help you assemble, prepare, maintain and safely operate your machine. Your outdoor power equipment was built to be operated according to the rules and instructions for safe operation which are contained in the operator's manual and on the machine itself.
Safety rules and instructions, if not followed, could endanger the personal safety and/or property of the operator and others. Read and follow all instructions in the manual before attempting to operate your outdoor power equipment. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. Your machine is capable of amputating hands and feet and throwing objects. Failure to observe the safety rules and instructions, both on the machine and in the Operator's Manual, could result in serious injury or death.
Important: Cub Cadet, its parents, affiliates and subsidiaries, is concerned about the safety of its customers and others. Due to the size of the Operator's Manual, some Operator's Manuals are broken down into two or more segments so that the entire Operator's Manual can be downloaded easily. Cub Cadet is requiring all those who wish to download a copy of the Operator's Manual to acknowledge that he/she will download the portion of the Operator's Manual that contains the Important Safe Operation Practices section, as stated below. This is to ensure that this section is reviewed and accessible when operating, servicing and/or maintaining the machine.
NOTICE: BY CONTINUING I AFFIRM THAT I WILL DOWNLOAD THAT PORTION OF THE OPERATOR'S MANUAL WHICH CONTAINS SECTION 1: IMPORTANT SAFE OPERATION PRACTICES, AND THAT I WILL READ AND FOLLOW THE SAFETY RULES AND INSTRUCTIONS PROVIDED.
By clicking "I AGREE" below, you certify that you have read and accepted the above notice.
